CYP PUV-1082PL-4K22N 10x10 HDBaseT LITE Matrix Dubai

PUV-1082PL-4K22N 10 x 10 4K HDMI HDBaseT1 LITE Matrix with OAR

CYP In stock: Dubai warehouse WhatsApp enquiry

✔ Authorised CYP distributor for the UAE and GCC

✔ Dubai warehouse stock, same-day dispatch on trade orders

✔ Delivery across UAE, Saudi Arabia, Qatar, Kuwait, Bahrain and Oman

✔ Trade accounts: apply free on cache.ae

MRSP : AED 23,367.00

10x10 4K HDMI/HDBaseT Matrix with Audio & PoH The PUV-1082PL-4K22N is a 10x10 HDMI/HDBaseT matrix, supporting 4K@60Hz, HDR, HDCP 2.2, and Dolby Atmos. It delivers video up to 60m over CAT5e/6/7 and direct HDMI outputs up to 10m. Featuring a 14-output audio matrix, Optical Audio Return (OAR), CEC automation, and PoH for compatible receivers, it ensures seamless AV distribution. Control is via IR, RS-232, Telnet, WebGUI, or manual selection, making it ideal for professional AV installations.

PUV-1082PL-4K22N 10 x 10 4K HDMI HDBaseT1 LITE Matrix with OAR Overview

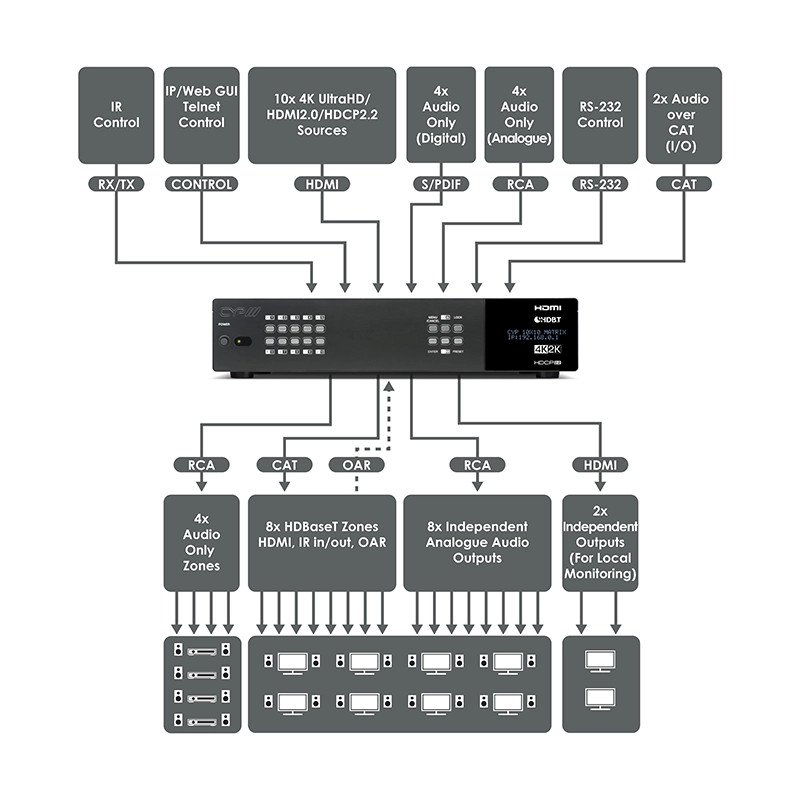

The PUV-1082PL-4K22N HDMI/HDBaseT Matrix supports the transmission of video (resolutions up to 4K2K@60Hz, HDCP 2.2, HDMI2.0) and multi-channel digital audio from 10 HDMI sources to 8 HDBaseT outputs and 2 independent HDMI2.0 outputs. HDBaseT outputs allow transmission via a single CAT5e/6/7 cable up to 60m, whilst the independent HDMI outputs support cable lengths of up to 10m. This matrix supports high resolution digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master Audio as well as 3D video content.

This revised version of our popular 10x10 matrix now includes 6G input auto conversion, pre-gain volume control on all audio inputs, simple automation via CEC sending, and an advanced pattern generator.

This matrix incorporates an independent audio matrix with 14 audio outputs and 10 audio inputs. These outputs and inputs can also be used for de-embedding HDMI audio to the audio outputs and embedding audio to the HDBaseT and HDMI outputs. The audio CAT connections, along with compatible bi-directional audio modules (PU-305BD-TX & PU-305BD-RX & PU-305BDA-RX) allow integration with remote sources and remote audio zones. In addition, volume, mute, treble, bass and audio lip-sink correction controls are available on all direct audio outputs. Optical Audio Return (OAR) Technology allows the optical input on the PUV-1230PLRX receiver to be routed back to the audio matrix. Video signals beyond the bandwidth of HDBaseT will be automatically converted to ensure a picture is always transmitted to the HDBaseT receiver.

HDMI inputs and HDBaseT / HDMI outputs can be configured to send command-based HEX CEC messaging. HDBaseT outputs can be configured to downscale either via Auto EDID read or permanently ON or OFF. The matrix has a built-in pattern generator which can be used to verify the video signal on any of its 10 output ports. The Power over HDBaseT (PoH) function provides power to compatible receivers.

Control is via manual selection buttons, IR, RS-232, Telnet or Web GUI. CYP provide control drivers for all the major control systems. The PUV-1082PL-4K22N is designed to be used with PUV-1230PLRX or PUV-1210PLRX receivers that can utilise the PoH capabilities of the matrix.

CYP AV Distribution, HDBaseT & AV over IP Solutions, UAE & GCC Distributor

CYP is a leading manufacturer of professional AV distribution and signal management equipment, trusted by system integrators worldwide. The comprehensive product range includes HDBaseT extenders and receiver kits for transmitting 4K HDMI signals up to 100 metres over single CAT cables, Full 4K HDMI matrix switchers for multi-source multi-display installations, SDVoE-based AV over IP systems for scalable campus-wide video distribution, and a wide range of audio converters, digital optical splitters, Dante audio networking products, and USB-C capture recorders. CYP products meet the rigorous demands of commercial AV, corporate, hospitality, education, and government installations, where signal integrity, 4K and HDR compatibility, and long-distance reliability are non-negotiable.

Cache Robotics Trading LLC is the authorised B2B distributor of CYP products across the UAE and GCC. We supply integrators, AV consultants, and systems contractors with the full CYP range from entry-level HDBaseT extender kits to enterprise-scale AV over IP matrices, with local stock availability, competitive trade pricing, and technical pre-sales support. Our team has deployed CYP solutions in boardrooms, hotel ballrooms, command-and-control centres, and residential home cinema rooms across Dubai, Abu Dhabi, Riyadh, and Doha. Email info@cache.ae to request a trade account or product quotation.

Cache Robotics Trading LLC, Authorised B2B distributor of premium AV, smart home and climate control brands across the UAE and GCC. Trade enquiries: info@cache.ae.

PUV-1082PL-4K22N 10 x 10 4K HDMI HDBaseT1 LITE Matrix with OAR Frequently Asked Questions

What is the PUV-1082PL-4K22N 10 x 10 4K HDMI HDBaseT1 LITE Matrix with OAR?

⌃

The PUV-1082PL-4K22N 10 x 10 4K HDMI HDBaseT1 LITE Matrix with OAR is part of the CYP range supplied by Cache, the authorised distributor for the UAE and GCC.

Is the PUV-1082PL-4K22N 10 x 10 4K HDMI HDBaseT1 LITE Matrix with OAR available in the UAE?

⌃

Yes. Order the PUV-1082PL-4K22N 10 x 10 4K HDMI HDBaseT1 LITE Matrix with OAR through cache.ae with a trade account, or contact us on WhatsApp +971 58 541 2806 for availability and project pricing.

How do I get trade pricing for the PUV-1082PL-4K22N 10 x 10 4K HDMI HDBaseT1 LITE Matrix with OAR?

⌃

Apply for a free trade account on cache.ae. Once approved, trade pricing for the PUV-1082PL-4K22N 10 x 10 4K HDMI HDBaseT1 LITE Matrix with OAR is visible when you log in and you can order online.

Do you deliver the PUV-1082PL-4K22N 10 x 10 4K HDMI HDBaseT1 LITE Matrix with OAR across the GCC?

⌃

Yes. Cache supplies the UAE, Saudi Arabia, Qatar, Kuwait, Bahrain and Oman from Dubai.
