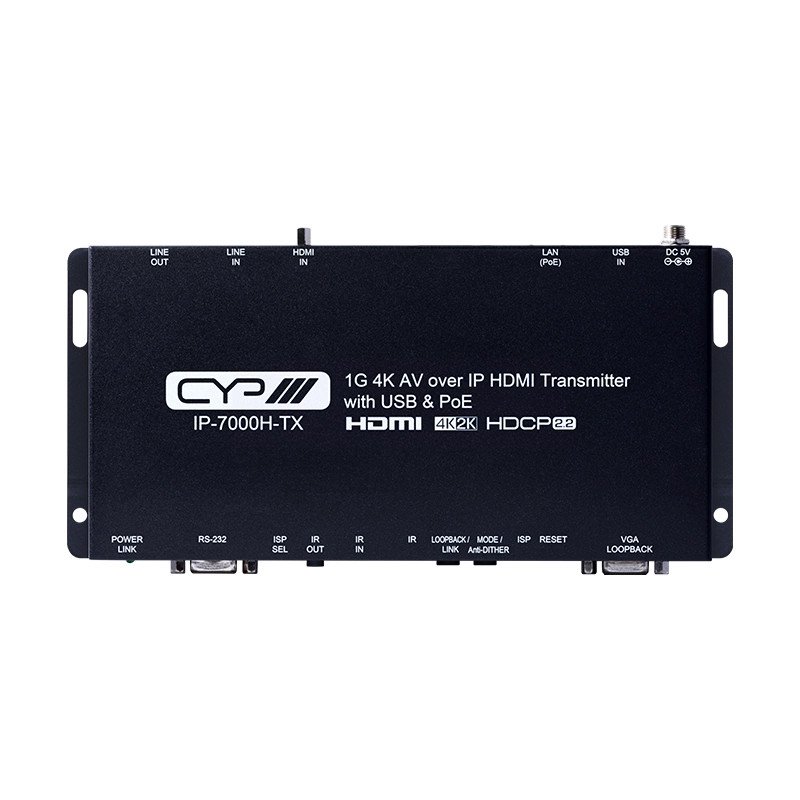

IP-7000H-TX – 1G 4K AV over IP HDMI Transmitter with USB & PoE

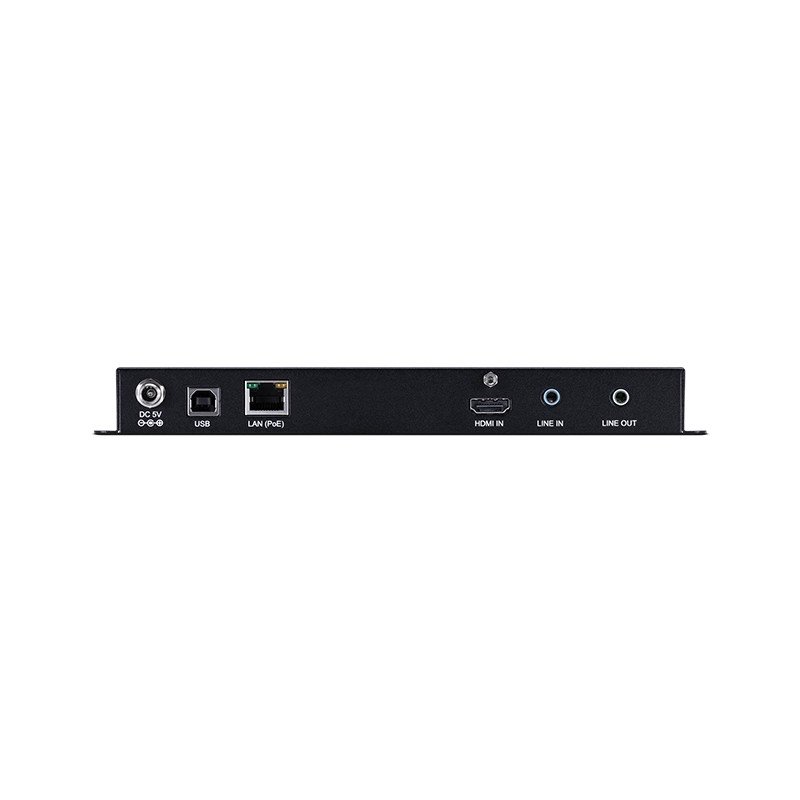

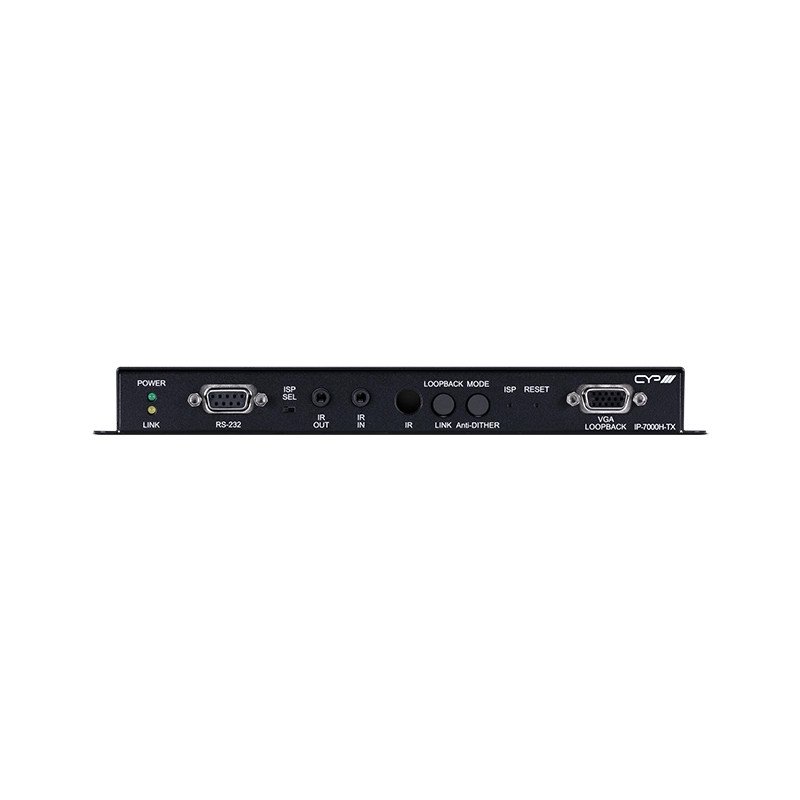

The IP-7000H-TX is the latest 1G AV over IP Transmitter, with industry standard HDMI, RS232, IR, Analogue audio & USB inputs connectivity is straightforward.

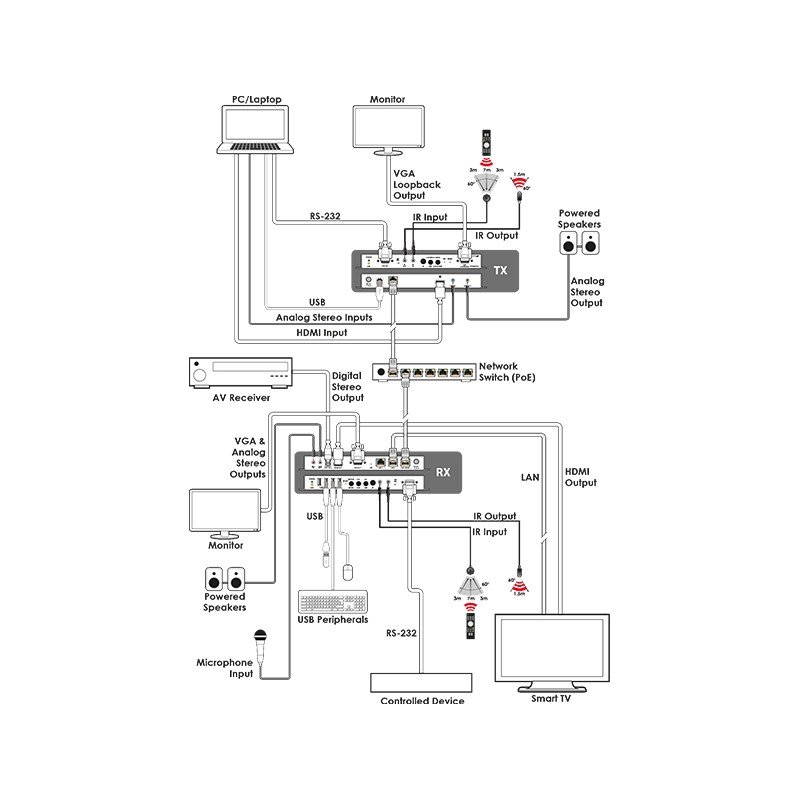

​​The IP-7000 series allows installers to configure a unique signal distribution system via a dedicated IT Network Infrastructure. You are in control when deciding how many inputs and end-points you require from the system; whether it be one transmitter to many receivers or many to many, your possibilities are endless. Using the IP-A750's you can add even audio only zones. Simplicity is at the core of the IP-7000 as both the transmitter and receiver support PoE.

The video and audio can be transmitted via an IP network for distances up to 100m through a single network switch. The transmission distance can be further extended up to 100m between network switches and supports Gigabit networks.

This system also features bi-directional IR pass-through, analogue line level in/out, and microphone input provide the user with variety of audio options. The USB function allows the system to act like USB hub which, when combined with the VGA loopback output feature, it allows the system to be used as a KVM switch. Adding extra devices allows the user to cascade the system enabling them to extend the transmission distance without signal loss or introducing perceivable delay.

Control is via Telnet, IR Remote, WebGUI and RS-232 commands with On-screen Display (OSD) feedback messaging.

The IP-7000H-TX is the replacement for the original IP-7000TX which is EOL due IC EOL.
