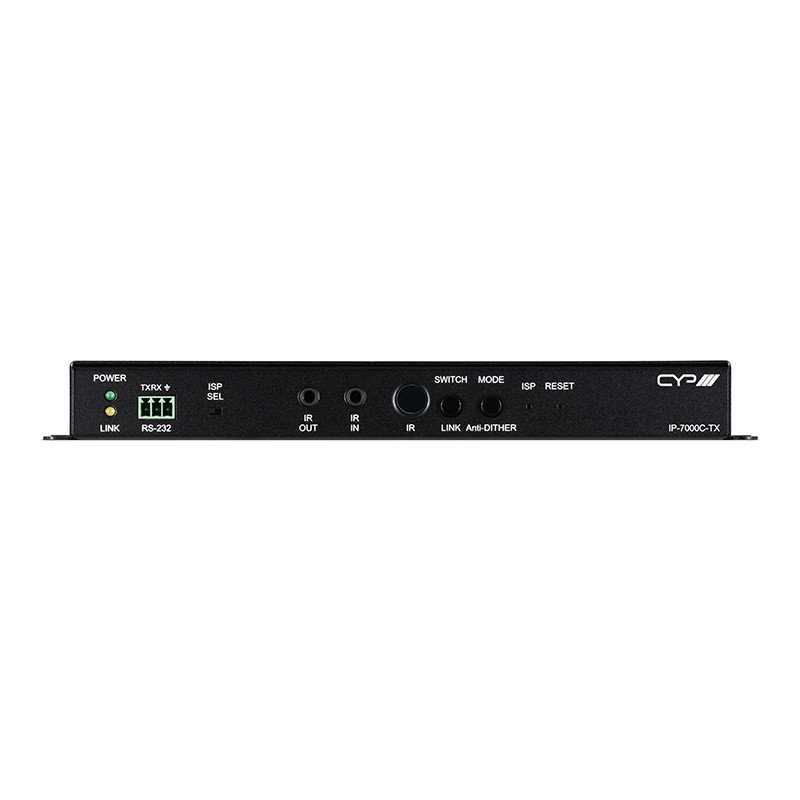

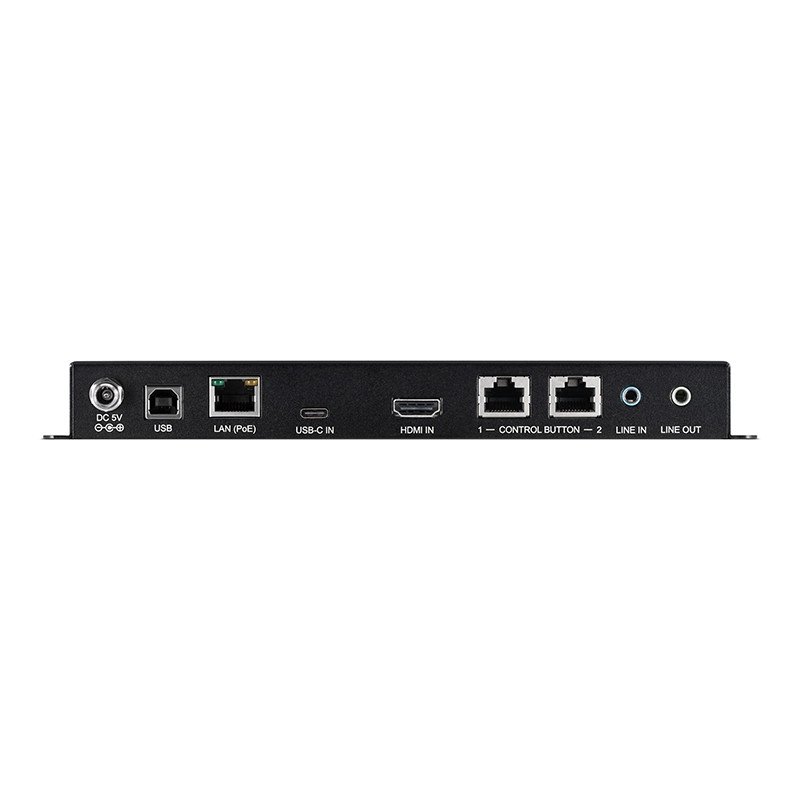

IP-7000C-TX – 1G 4K AV Over IP USB-C & HDMI transmitter with USB & PoE

​The IP-7000C-TX is the latest 1G AV over IP Transmitter, adding a USB-C input to the industry standard HDMI, RS232, IR, Analogue audio & USB inputs connectivity.

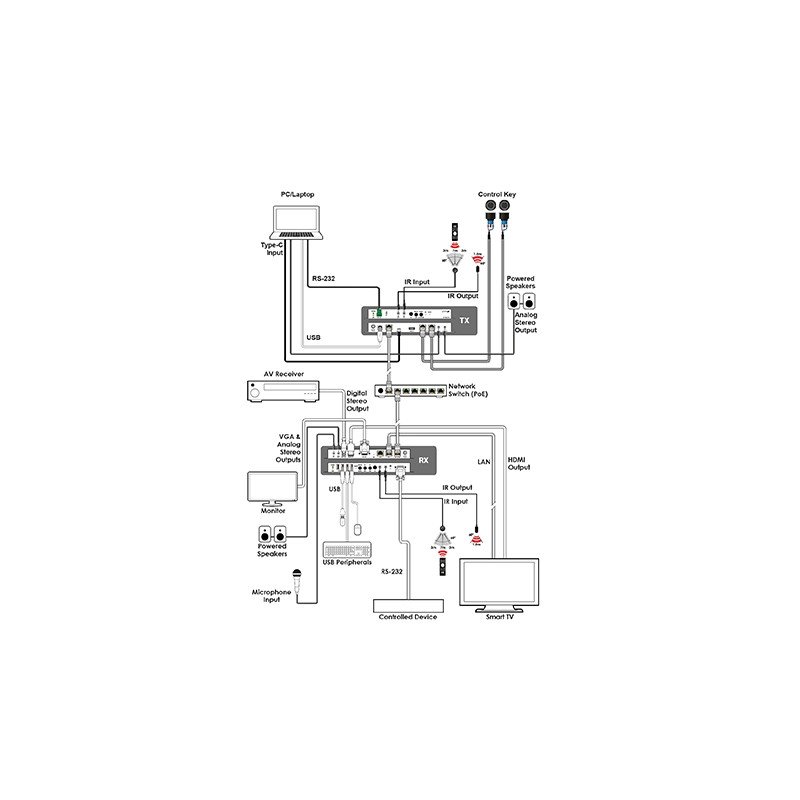

​​The IP-7000 series allows installers to configure a unique signal distribution system via a dedicated IT Network Infrastructure. You are in control when deciding how many inputs and end-points you require from the system; whether it be one transmitter to many receivers or many too many, your possibilities are endless. Using the IP-A750TX & RX you can add even audio only zones. Simplicity is at the core of the IP series as all transmitter, receiver and the controller support PoE.

The video and audio can be transmitted via an IP network for distances up to 100m through a single network switch. The transmission distance can be further extended up to 100m between network switches and supports Gigabit networks.

This system also features bi-directional IR pass-through, analogue line level in/out, and microphone input provide the user with variety of audio options. The USB function allows the system to act like USB hub allowing the system to be used as a KVM switch. Adding extra devices allows the user to cascade the system enabling them to extend the transmission distance without signal loss or introducing perceivable delay.

Control is via Telnet, IR Remote, WebGUI and RS-232 commands with On-screen Display (OSD) feedback messaging. The use of the AV over IP controller, the IP-CS7 is recommended for large or matrix systems.
