1Home Server CH
Product information
MRSP : AED 4,299.00
Description
Product specifications
Model: 1Home Server CH (Crestron)
Processor: Dual-core ARM Cortex-A72
Memory: 2 GB RAM
Storage: 16 GB eMMC (industrial grade)
Power Supply: 9–30 VDC (2-pin connector)
Power Consumption: < 3W typical
Interfaces:
• 1 x KNX TP1 (via external connector)
• 1 x Ethernet (10/100/1000 Mbps)
• 1 x USB 2.0
Mounting: DIN rail (4 modules wide)
Dimensions: 70 x 90 x 58 mm (W x H x D)
Operating Temperature: -10°C to +50°C
Certifications: CE, RoHS
Connectivity:
• Crestron Home (via 1Home driver)
Configuration: Web interface (no ETS changes required)
Cooling: Passive (fanless)
Product Description

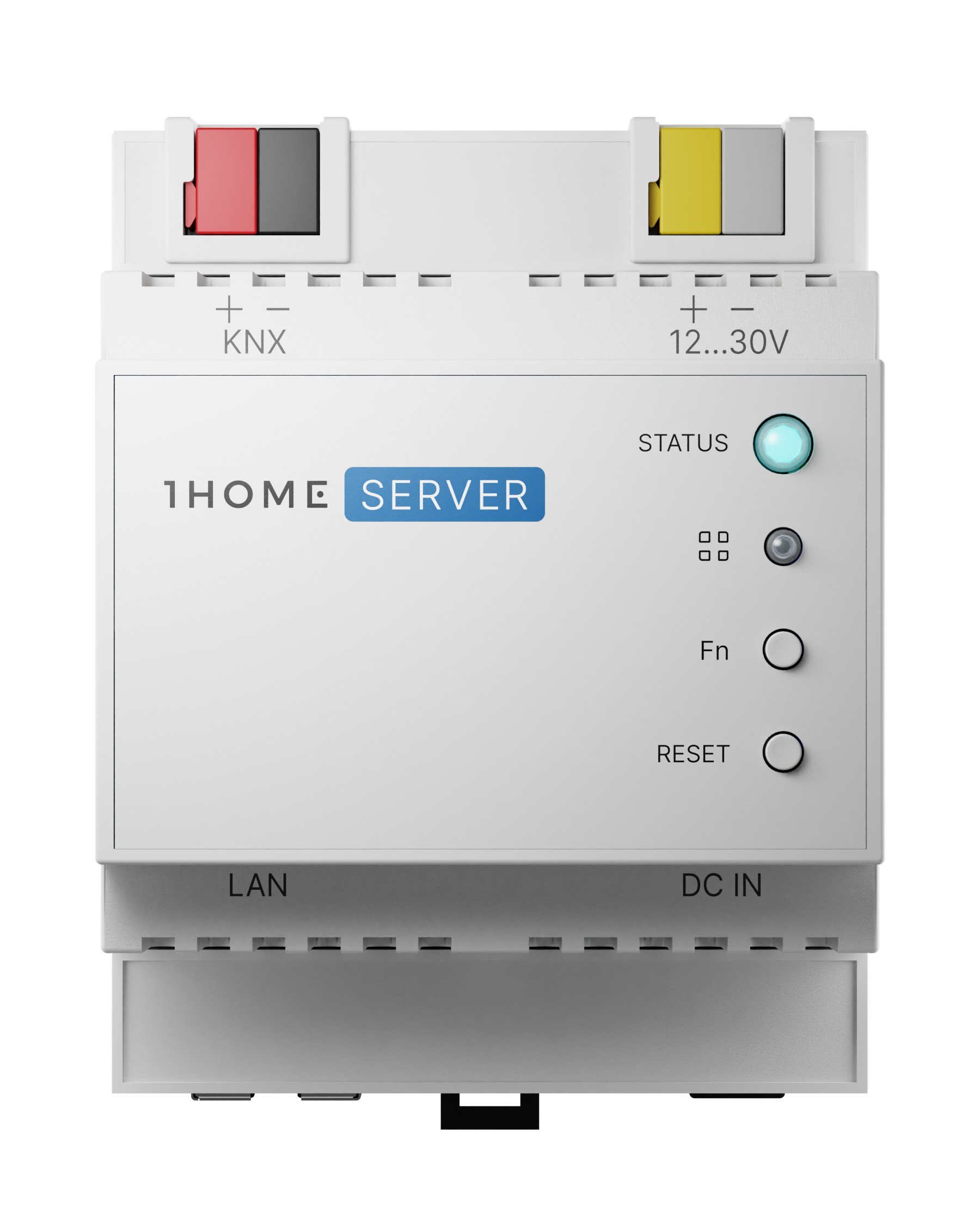

1Home Server CH – Seamless KNX Integration for Crestron
The 1Home Server CH is built to bridge KNX systems with Crestron Home, offering professional-grade performance in a compact DIN-rail enclosure. Designed for installers, it enables fast configuration, local execution, and secure communication between KNX and Crestron — without the need for complex programming or cloud services.
Whether you're retrofitting a home or deploying Crestron in a new build, this device delivers a smooth, reliable KNX integration experience backed by professional support.
Key Features:
Native support for Crestron Home (via ready-made 1Home driver)
Secure and fast local execution – no cloud required
Compact form factor for DIN-rail installations
Easy web-based configuration – no ETS changes needed
Remote access and diagnostics for installers
Ideal For:
Villas and luxury residences using Crestron Home
Projects requiring rock-solid KNX integration
Retrofitting existing KNX systems into Crestron control environments
