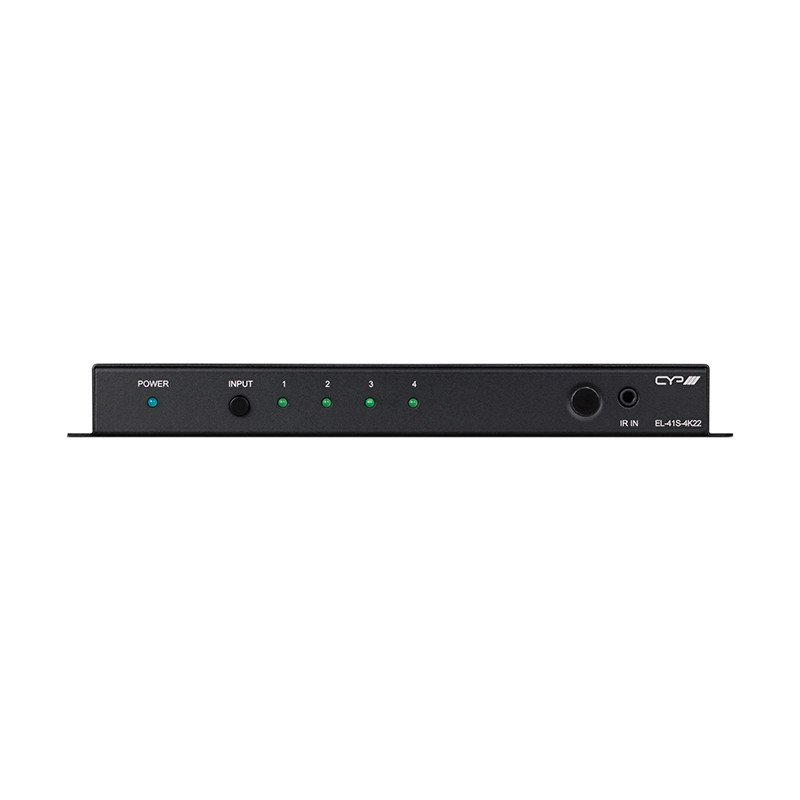

EL-41S-4K22 – 4-Way Full 4K HDMI Switcher with local IR

Product information

MRSP : AED 1,104.00

Description

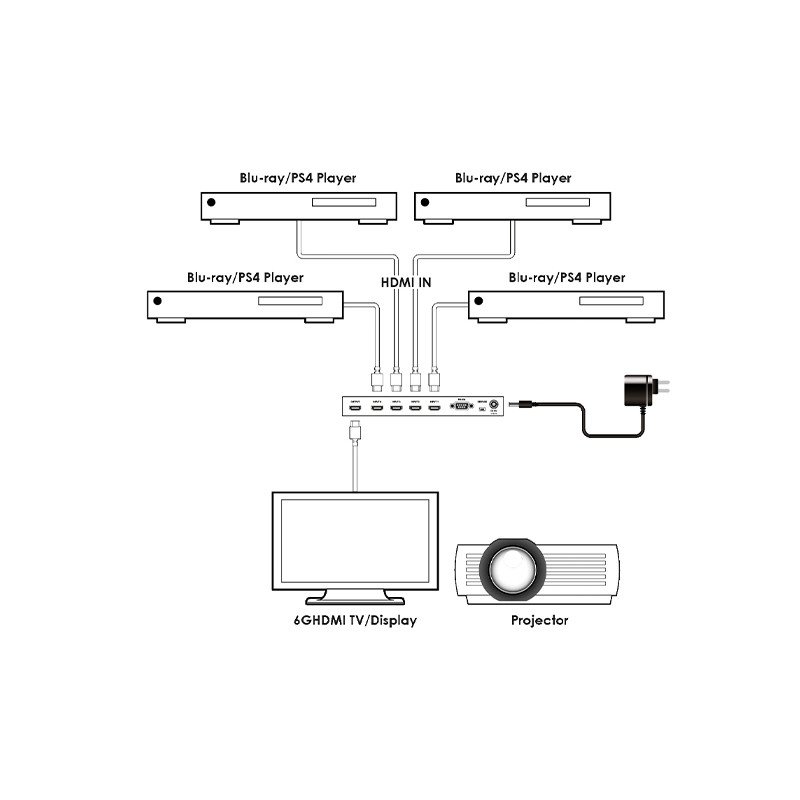

This 4-Way HDMI Switcher is designed to enable the user to switch between any of the four connected HDMI sources to send video and audio to a single HDMI display. This switcher fully supports 4K resolutions and is HDMI2.0 and HDCP 2.2 compliant, ensuring maximum compatibility with the latest 4K UHD sources and displays. The EL-41S-4K22 supports all the latest features of the HDMI 2.0 specification such as 4K UHD resolutions (4K2K@60Hz – YUV4:4:4),HDR (High Dynamic Range), ‘Deep Colour’, and High Definition audio. In addition, this switcher also features an Auto-Switching function which detects the last active input and switches to this input automatically for display. Control is via IR remote control and RS-232.
Register for Trade Discount

Product Description

  • HDMI2.0, HDCP 2.2 and DVI compatible

  • Supports 4 HDMI inputs and 1 HDMI output

  • Supports HDTV resolutions up to 4K2K (3840x2160@24/25/30/50/60 & 4096x2160 @24/25/30/50/60Hz) including HDR

  • Supports pass-through of HD audio formats of PCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio

  • Supports control via IR remote and RS-232

  • Supports Auto-switching which can send the signal of the latest active HDMI input source to output port

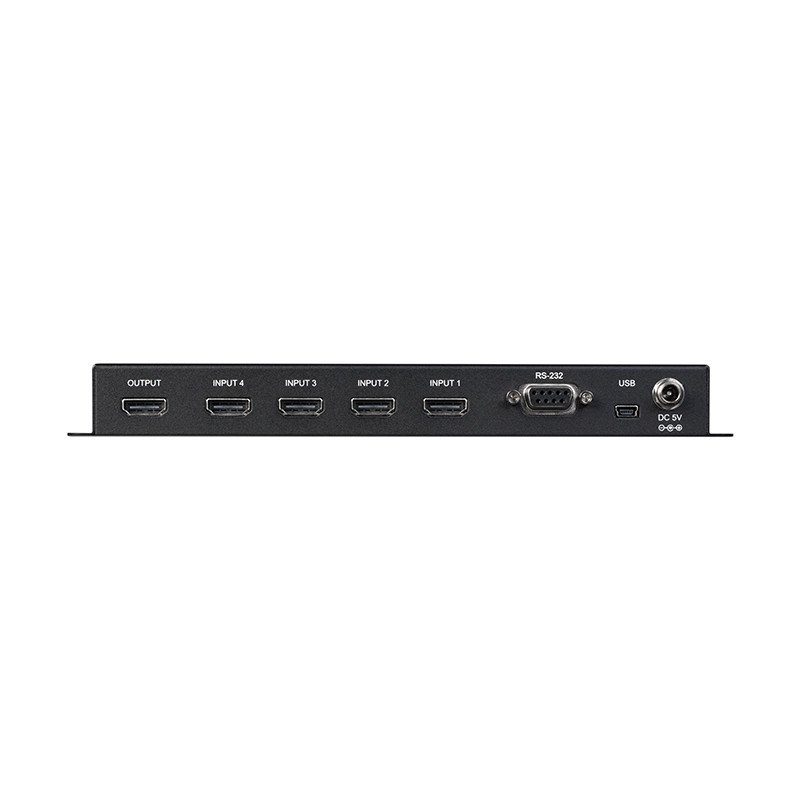

Inputs
4x HDMI [4x HDMI Uncompressed AV and Data]
1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
1x 9pin Dsub [1x RS-232 Data]
1x USB Type A [1x Service Port Propriety Data]

Outputs
1x HDMI [1x HDMI Uncompressed AV and Data]PSU5V/2.6A

Dimensions
231.5mm [W] x 25mm [H] x 108mm [D]

Net Weight
620g


Gross Weight
1kg
