IP Video Indoor Station A1103 Black Edition
Product information
Description
Product specifications
- Model: A1103 Black Edition
- Use: residential, commercial, and public buildings
- Material: polycarbonate and glass, black
- Display: 7 inch True IPS LCD, capacitive touch, 1024 x 600 px
- Audio: speaker and microphone, two way streaming, echo and noise cancellation (AEC and ANR), HD audio up to 102 dB, more than 50 doorbell sounds
- Network: Ethernet PoE IEEE 802.3at, 10/100 Base-T; WiFi 802.11 b/g/n 2.4 GHz
- Power: 15 to 48 V DC (min. 15 W) or Power over Ethernet (PoE 802.3af Mode-A); consumption max. 10 W
- Connectors: RJ45 for LAN/PoE; 2 digital inputs (for example storey call buttons); 2 bistable latching relays, max. 24 V DC/AC, 1 A (for example electric door opener or lift); 15 to 48 V DC input
- Relays: 2 freely configurable bistable switching relays
- Weight: 510 g
- Dimensions: 146 x 185 mm (H x W), depth approx. 26 mm
- Operating conditions: 0 to +55 °C (32 to 131 °F)
- Humidity: 0% to 85%, non condensing
- Mounting: surface mounted; fits European 68 mm hollow wall box or US single gang box; table stand A8003 and wall mounting base A8011 sold separately
- Supported door stations: any DoorBird IP video door station
- Configuration: DoorBird app and web based dashboard, worldwide
- Approvals: CE RED, IEC/EN 62368, FCC, IC, REACH, RoHS 2.0, California 65, WEEE
- Scope of delivery: indoor station, mounting bracket, power supply unit with up to four country adaptors (100 to 240 V AC to 15 V DC), quickstart guide with digital passport, installation manual, small parts
- Made in Germany
Product Description

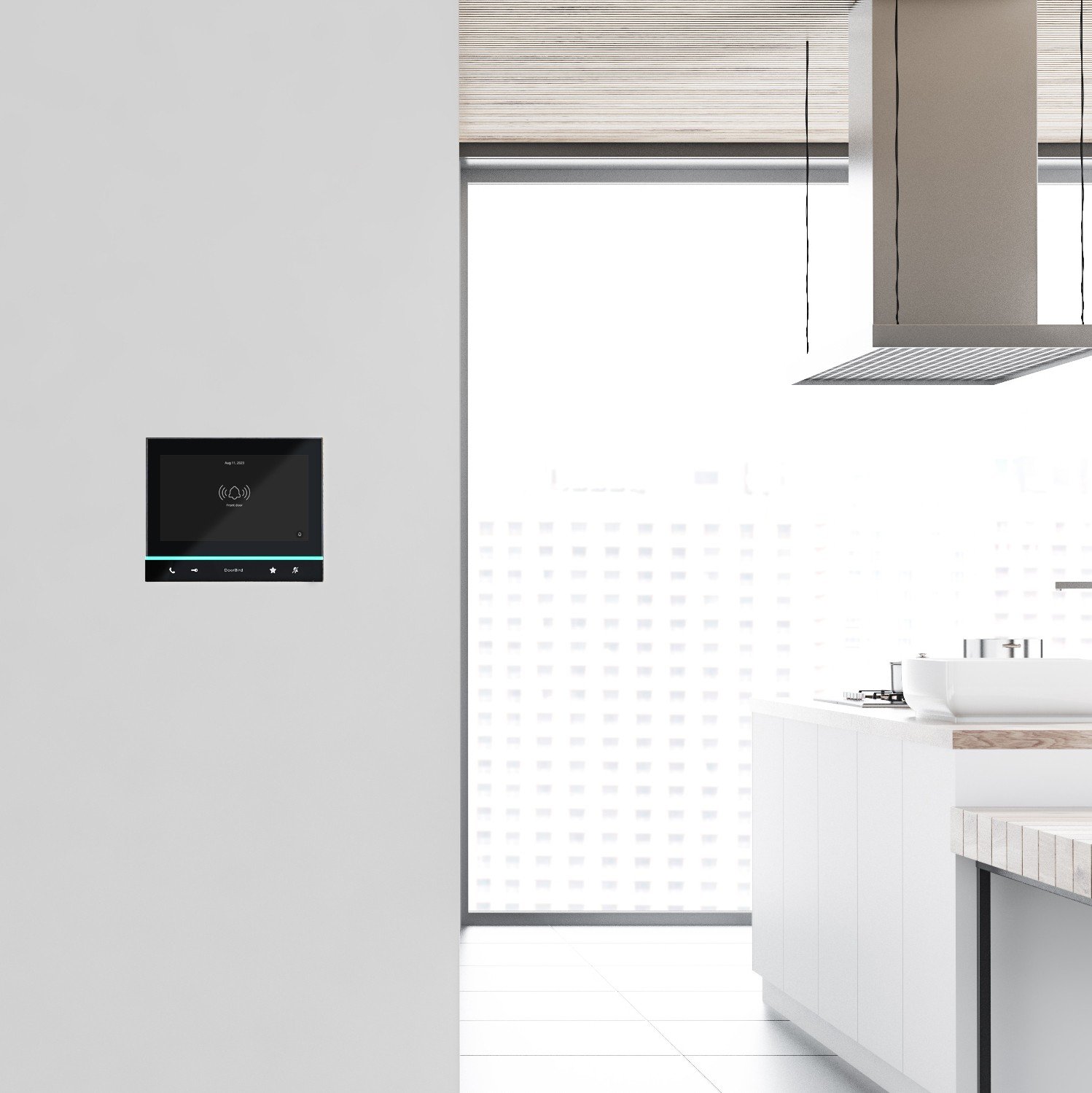

The DoorBird A1103 Black Edition is an IP video indoor station for door communication in residential, commercial, and public buildings. Paired with any DoorBird IP video door station, it delivers an HD live video stream and crystal clear two way audio, with one touch control of doors and gates.

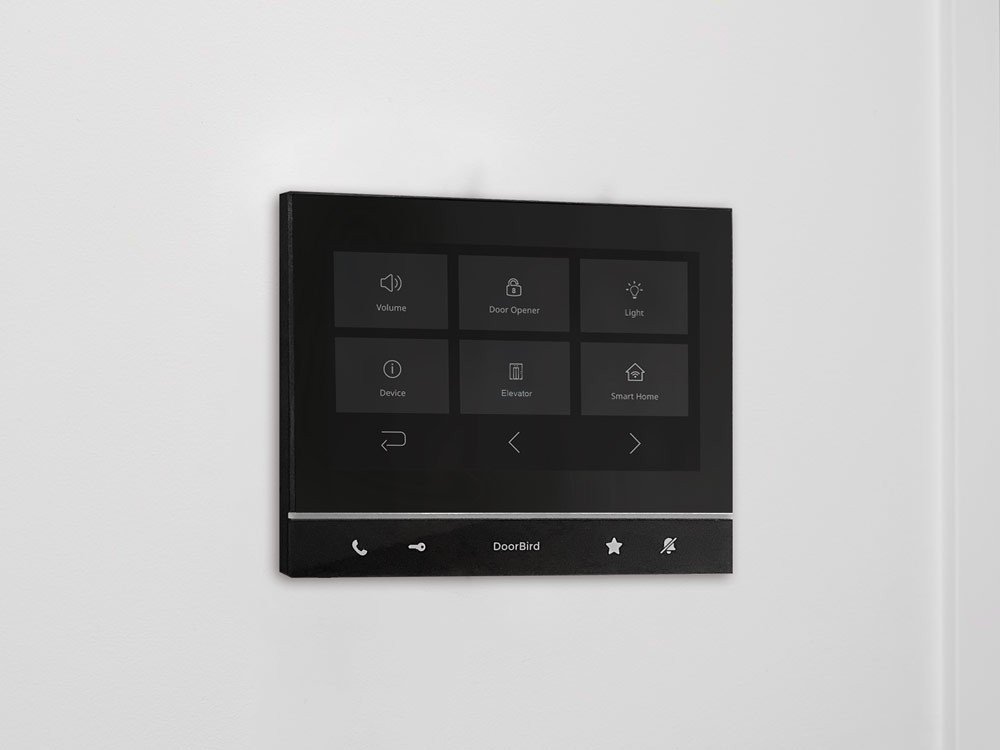

The 7 inch True IPS touch display sits behind scratch resistant tempered glass and is paired with a practical touch bar carrying the main functions, making everyday use straightforward for residents and visitors alike. A configurable RGB LED status bar signals callers and missed calls at a glance.
Connectivity is flexible, over WiFi or wired LAN with Power over Ethernet, so it suits both retrofit and new installations. Two freely configurable bistable relays and two digital inputs allow integration with door openers, lift control, storey call buttons, and wider home and building automation over IP, TCP, HTTPS, and relays. SIP support makes it suitable for concierge or facility manager calls, and configuration is handled through the DoorBird app and web dashboard from anywhere in the world.

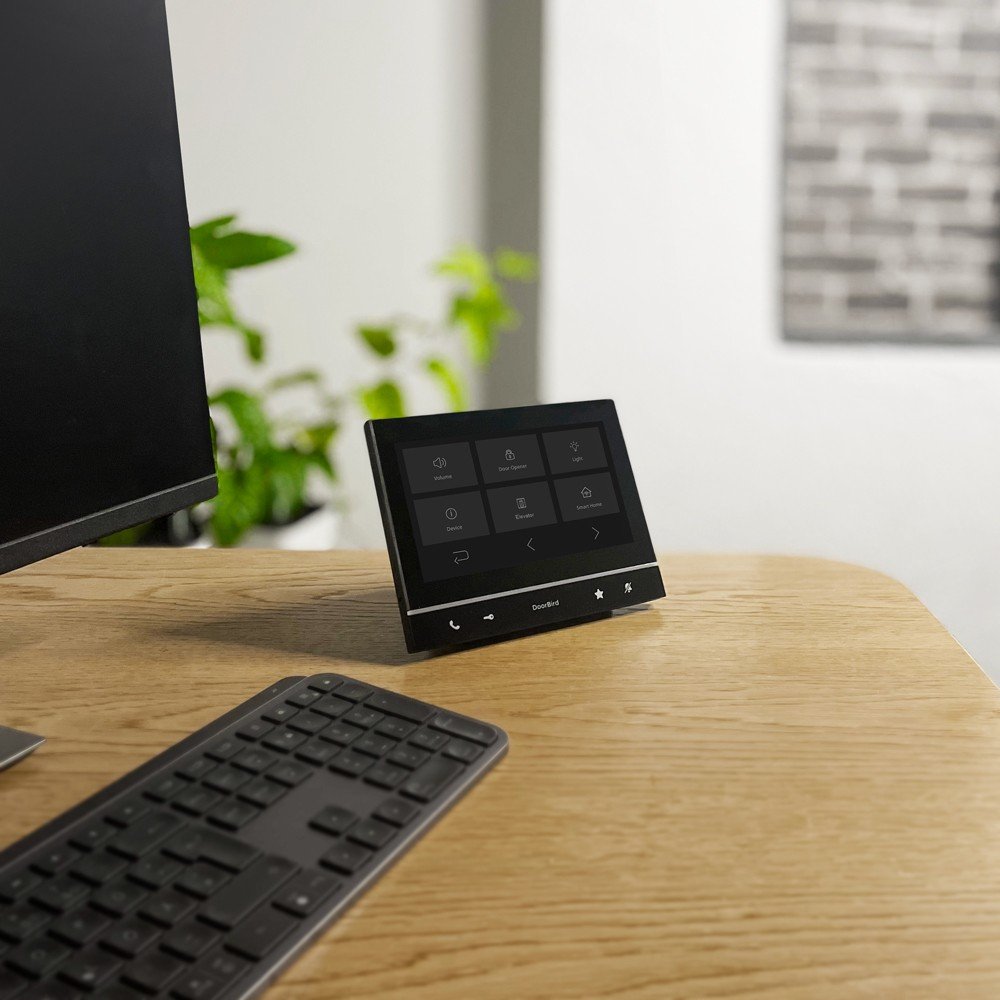

Built in Germany by Bird Home Automation, the A1103 mounts to a standard European 68 mm box or US single gang box, with an optional table stand and wall mounting base available separately.
