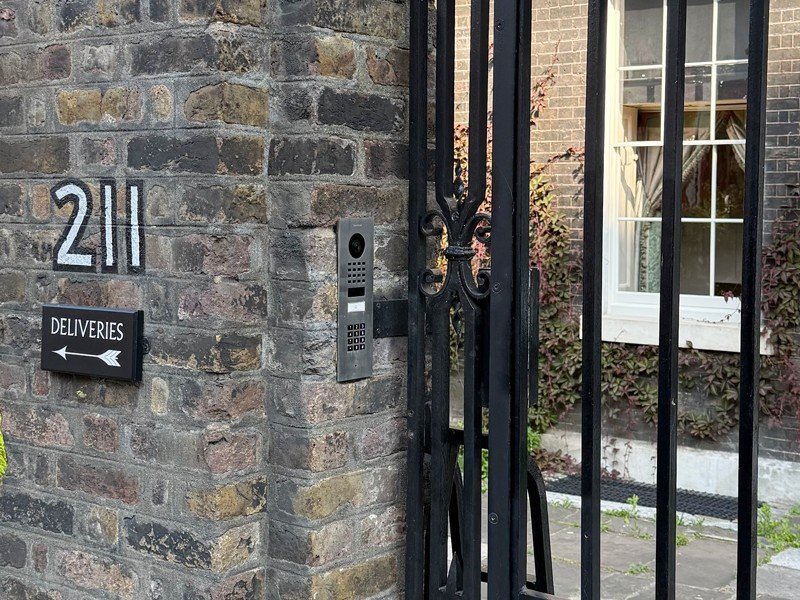

D1101KV Flush-mount IP Video Intercom
Product information
Description
Product specifications
- Model: D1101KV Flush-mount, IP video door station, 1 call button with keypad module
- Front panel: stainless steel V2A, brushed, 3 mm (other materials and finishes available)
- Mounting housing (backbox): stainless steel
- Mounting type: flush mounted (surface mount version sold separately)
- Call button: illuminated backlit nameplate; metal cover plate and engraving available separately
- Keypad: 12 illuminated keys, configurable via app, up to 500 PIN codes, individual events and schedules
- Camera: HDTV 1080p, dynamic (VGA to HDTV)
- Lens: ultra wide angle hemispheric, 180° (D), 150° (H), 82° (V), IR capable
- Night vision: light sensor, automatic IR cut filter, infrared LEDs (850 nm)
- Audio: speaker and microphone, two way full duplex, noise reduction and echo cancellation (ANR and AEC)
- Motion sensor: active, 4D technology, detection angle 80° (H) and 50° (V), range 1 to 6 m, configurable in 1 m steps
- Network: Ethernet PoE 802.3af Mode-A, 10/100 Base-T; WiFi 2.4 GHz b/g/n
- Wireless modules: WiFi 2.4 GHz; Bluetooth Low Energy (compatible with Keyfob A8007); 24 GHz sensor (can be disabled)
- Relay: one freely configurable bistable latching relay, max. 1 to 24 V DC/AC, 1 A (for example electric door opener)
- Connectors: LAN/PoE; bistable relay; external input for door opener button; 15 V DC input
- Power: 15 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A)
- Protection class: IP65, IK08
- Weight: 880 g
- Dimensions: 263 x 85 x 26.7 mm (H x W x D), 10.35 x 3.35 x 1.05 in
- Operating conditions: -25 to +55 °C (-13 to 131 °F)
- Humidity: 10 to 85% RH, non condensing
- Supported protocols: HTTP, HTTPS, SSL/TLS, Bonjour, DNS, RTSP, RTP, TCP, UDP, RTCP, ICMP, DHCP, ARP, SIP, DTMF, STM
- Approvals: CE, UKCA, FCC, IC, RoHS, REACH, WEEE, Wi-Fi Certified
- Recommended camera height: minimum 145 cm (57 in)
- Scope of delivery: main electrical unit, front panel, flush mounting housing (backbox), power supply unit with up to four country adaptors (100 to 240 V AC to 15 V DC), RJ45 adapter, screwdriver, quickstart guide with digital passport, installation manual, small parts
- Made in Germany
Product Description
The DoorBird D1101KV Flush-mount is an IP video door station for a single entrance, combining one illuminated call button with a 12 key keypad module for keyless entry. Connect it to your smartphone or tablet and you can see, hear, and speak with visitors and release the door or gate from anywhere, with a push notification each time the bell is pressed.
The camera is an HDTV 1080p unit behind a high end ultra wide angle hemispheric lens with a 180 degree field of view, supported by infrared night vision with an automatic IR cut filter. A 4D motion sensor with a range of up to 6 metres can trigger lighting, recording, or notifications on a schedule, and two way full duplex audio with noise reduction and echo cancellation keeps conversations clear.
The keypad manages up to 500 individual PIN codes, each able to trigger its own events such as switching a relay or sending an HTTP request. One freely configurable bistable relay controls a door or gate, with an external input for a separate door opener button. Bluetooth Low Energy adds access control with the DoorBird Keyfob A8007.
It runs as a stand alone unit or integrates with major platforms including Control4, Loxone, Crestron, RTI, URC, Fibaro, and Bang and Olufsen, through an open API and SIP. Network connection is over WiFi or a single cable using Power over Ethernet. Rated IP65 and IK08 and built in Germany from stainless steel, it is supplied complete with its flush mounting housing.
