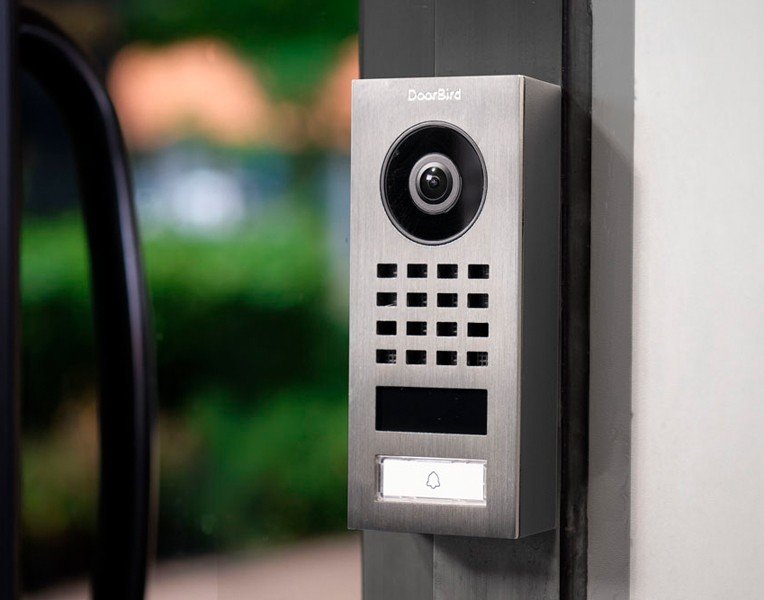

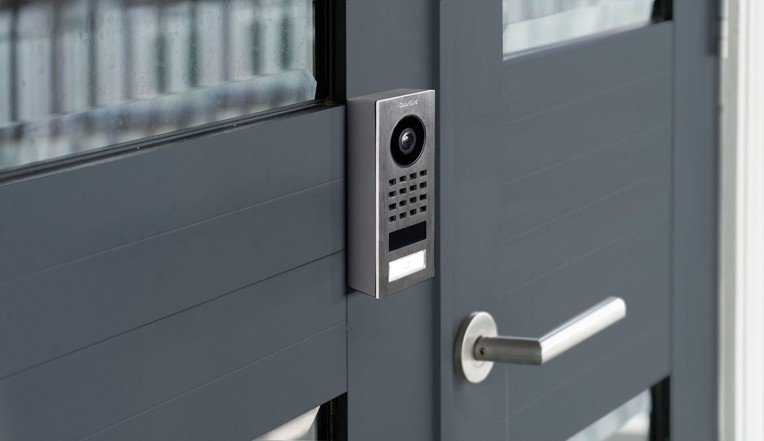

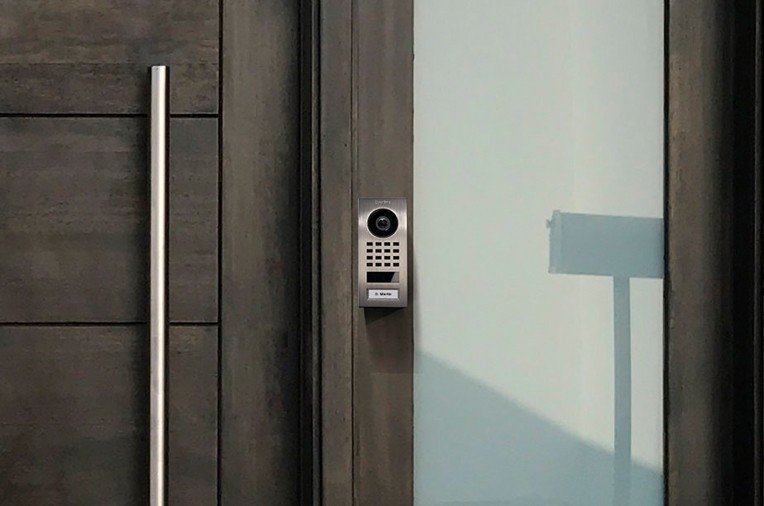

D1101V Surface-mount IP Video Intercom
Product information
Description
Product specifications
- Model: D1101V Surface-mount, IP video door station, Compact Edition, 1 call button (no keypad)
- Front panel: stainless steel V2A, brushed, 3 mm (other materials and finishes available)
- Mounting housing (backbox): polycarbonate
- Mounting type: surface mounted (flush mount version sold separately)
- Call button: illuminated backlit nameplate
- Camera: HDTV 1080p, dynamic (VGA to HDTV)
- Lens: high end ultra wide angle hemispheric, IR capable (see note below on field of view)
- Night vision: light sensor, automatic IR cut filter, 12 infrared LEDs (850 nm)
- Audio: speaker and microphone, two way, noise reduction and echo cancellation (ANR and AEC)
- Motion sensor: active, 4D technology, detection angle 80° (H) and 50° (V), range 1 to 6 m, configurable in 1 m steps
- Network: Ethernet PoE 802.3af Mode-A, 10/100 Base-T; WiFi 2.4 GHz b/g/n
- Wireless modules: WiFi 2.4 GHz; Bluetooth Low Energy; 24 GHz sensor (can be disabled)
- Relays: one freely configurable bistable latching relay (max. 1 to 24 V DC/AC, 1 A, for example electric door opener); switch relay (max. 24 V DC/AC, 1 A, for example conventional door chime)
- Connectors: LAN/PoE; bistable relay; switch relay; external input for door opener button; 15 V DC input
- Power: 15 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A)
- Weatherproof: IP65
- Weight: 471 g
- Dimensions: 151.9 x 65 x 32 mm (H x W x D), 5.98 x 2.56 x 1.26 in
- Operating conditions: -25 to +55 °C (-13 to 131 °F)
- Humidity: 10 to 85% RH, non condensing
- Supported protocols: HTTP, HTTPS, SSL/TLS, Bonjour, DNS, RTSP, RTP, TCP, UDP, RTCP, ICMP, DHCP, ARP, SIP, DTMF, STM
- Approvals: IP65, CE, FCC, IC, RoHS, REACH, IEC/EN 62368, IEC/EN 62471, Wi-Fi Certified
- Recommended camera height: minimum 145 cm (57 in)
- Scope of delivery: main electrical unit, front panel, surface mounting housing (backbox), power supply unit with four country adaptors (110 to 240 V AC to 15 V DC), screwdriver, quickstart guide with digital passport, installation manual, small parts
- Made in Germany
Product Description
The DoorBird D1101V Surface-mount is an IP video door station for a single entrance, the compact, single call button model in the D11 range. Connect it to your smartphone or tablet and you can see, hear, and speak with visitors and release the door or gate from anywhere, with a push notification each time the bell is pressed.
The camera is an HDTV 1080p unit behind a high end ultra wide angle hemispheric lens, supported by infrared night vision with an automatic IR cut filter and twelve infrared LEDs. A 4D motion sensor with a range of up to 6 metres can trigger lighting, recording, or notifications on a schedule, and two way audio with noise reduction and echo cancellation keeps conversations clear.
One freely configurable bistable relay controls a door or gate, with a further switch relay for a conventional door chime and an external input for a separate door opener button. Bluetooth Low Energy supports access control with compatible sensors and smart locks.
It runs as a stand alone unit or integrates with major platforms including Control4, Loxone, Crestron, ELAN, RTI, URC, Fibaro, and Bang and Olufsen, through an open API and SIP. Network connection is over WiFi or a single cable using Power over Ethernet. Weatherproof to IP65 and built in Germany from stainless steel, it is supplied complete with its surface mounting housing, so no recess is required in the wall.
