PUV-1530-KIT HDBaseT1 100m Extender Kit with LAN, OAR & PoH
Product information
MRSP : AED 3,679.00
Description
4K UHD AV Extension with PoH & OAR
The PUV-1530-KIT extends 4K UHD video, HD audio, IR, RS-232, PoH, OAR, and LAN up to 100m over a single CAT6a/7 cable.
Designed for seamless AV distribution, it ensures reliable signal transmission with advanced signal management, making it ideal for demanding installations.
Product specifications
- HDCP2.2 Compliant
- HDBaseT 5-Playโข convergence: High-Definition video and audio, 100BaseT Ethernet, PoH (Power over HDBaseT) and control (Bi-Directional IR & RS-232 pass through)
- Supported resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output displayโs EDID settings
- 4K/2K & 4K UHD signals can be transmitted up to 70m via CAT5e/6 and 100m via CAT6a/7
- Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
- Optical Audio Return (OAR)
- Supports optical sampling rate up to 48kHz
- Supports HDCP repeating and CEC functions
- Supports 3D signals
Product Description

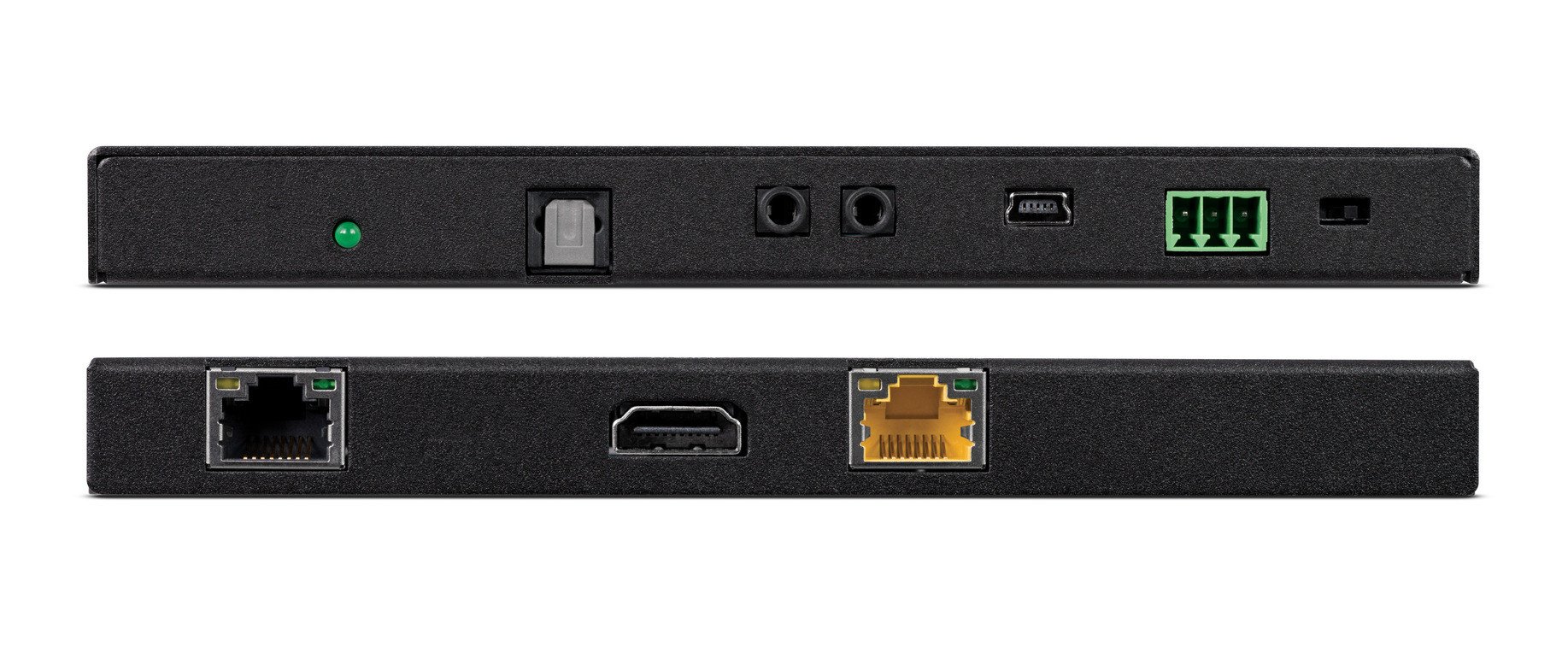

The PUV-1530-KIT Transmitter and Receiver Kit enables transmission of video resolutions up to 4K UHD, along with HD audio, 2-Way IR, RS-232, PoH (Power over HDBaseT), OAR (Optical Audio Return), and LAN signals up to 100m. This solution provides advanced signal management ensuring reliable results in the most demanding installation environments. All audio, video, control, and power are transmitted simultaneously over a single CAT6a/7 cable up to 100m.
