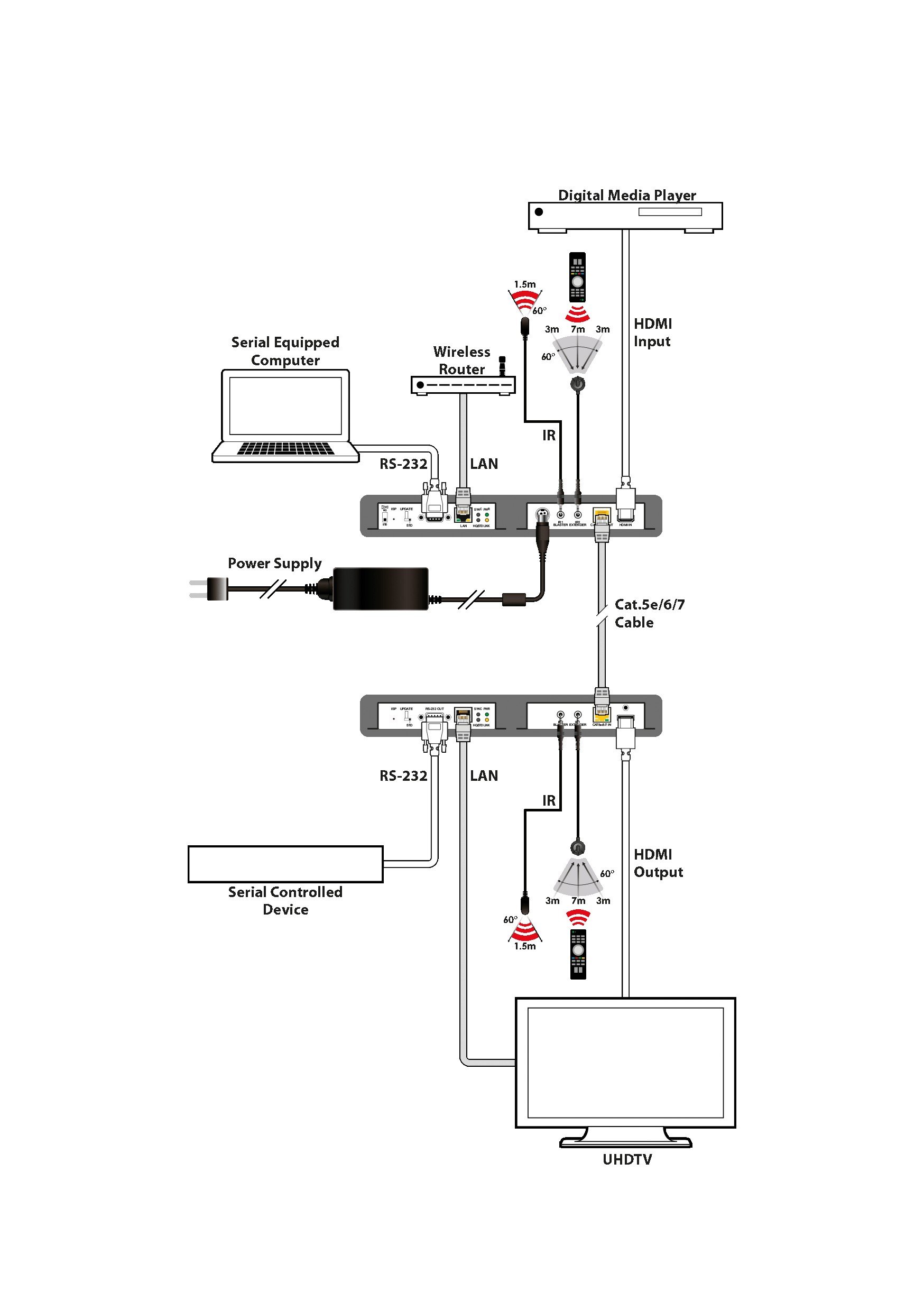

PUV-1810TXRX-AVLC_SCHEM

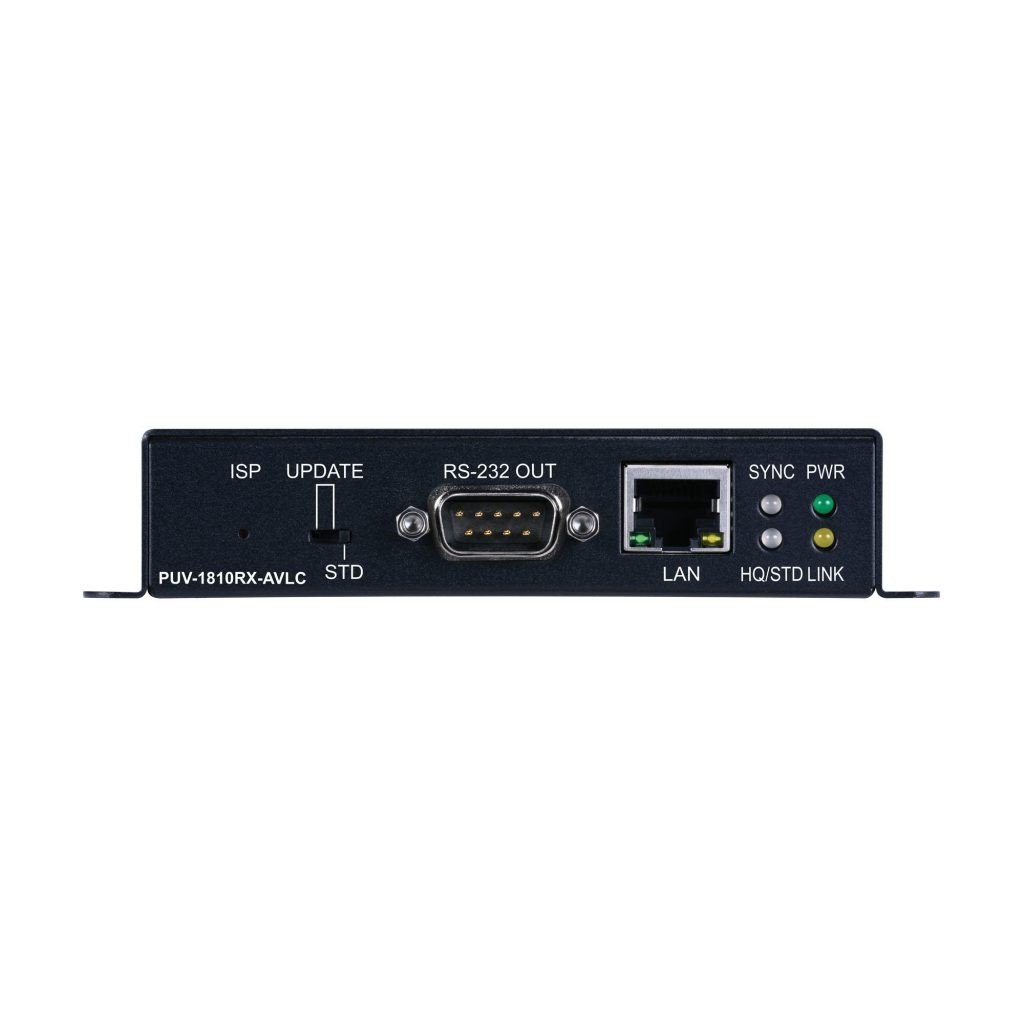

PUV-1810RX-AVLC – HDBaseT1 Full 4K AVLC Series Receiver with LAN & PoH

Product information

MRSP : AED 1,619.00

Description

4K HDR HDBaseT Receiver with AVLC & PoH The PUV-1830RX-AVLC receives 4K UHD video (10/12-bit HDR & Dolby Vision), HD audio, 2-way IR, RS-232, PoH, and LAN over a single CAT6a/7 cable up to 100m. With AVLC technology, it overcomes HDBaseT’s 10.2Gbps limit, delivering 18Gbps visually lossless 4K@60Hz (4:4:4) for flawless image quality. Ideal for high-performance AV installations, it ensures seamless, reliable signal transmission.
Register for Trade Discount

Product specifications

  • HDBaseT 5-Play™ convergence: High-Definition video and audio, 100BaseT Ethernet, PoH (Power over HDBaseT) and control (Bi-Directional IR & RS-232 pass through)
  • Supports up-to 4K UHD (18Gbps, 4K @50/60Hz 4:4:4 8-bit) video output
  • AVLC (Adaptive Visually Lossless Compression)
  • AVLC Features manual selection between High Quality and Standard compression from TX (Useful for longer cable runs)
  • Supports 10-bit and 12-bit HDR (High Dynamic Range)
  • Supports output resolutions up to 4K @50/60Hz (4:4:4 8-bit)
  • Supports Deep Colour input and output up to 12-bit
  • Supports CEC Bypass
  • 4K 3G Timings and 1080p up-to 100 Metres, 4K 6G Timings upto 70 Metres
  • Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
  • Supports 3D signals

Inputs

1x RJ45 [1x HDBaseT HDMI & Propriety Data]

1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]

HDMI [1x HDMI Uncompressed AV and Data]

1x 9pin Dsub [1x RS-232 Data]

Outputs

1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]

1x RJ45 [1x LAN Serving]

POE PSU:PoH

Product Description

The PUV-1830RX-AVLC Receiver enables video resolutions up to 4K UHD including 10/12-bit HDR & Dolby Vision, to be received along with HD audio, 2-Way IR, RS-232, PoH (Power over HDBaseT) and LAN signals up to a distance of 70m (4K 60 4:4:4); 100m (4K 60 4:2:0). This solution provides advanced signal management ensuring reliable results in the most demanding installation environments. All audio, video, control, and power are received simultaneously over a single CAT6a/7 cable up to 100m.

Despite the 10.2Gbps limitation of HDBaseT™ technology, this ground breaking product enables data rates of up to 18Gbps to be received using AVLC (Adaptive Visually Lossless Compression) Technology. The receiver enables 4KUHD sources up-to and including 4K@60Hz (4:4:4 8-bit) as well as 10/12 bit sources with HDR (Including Dolby Vision) to be received over distance from a compatible transmitter. The result is a perfect 6G 4K visually lossless image delivered to the display screen.
