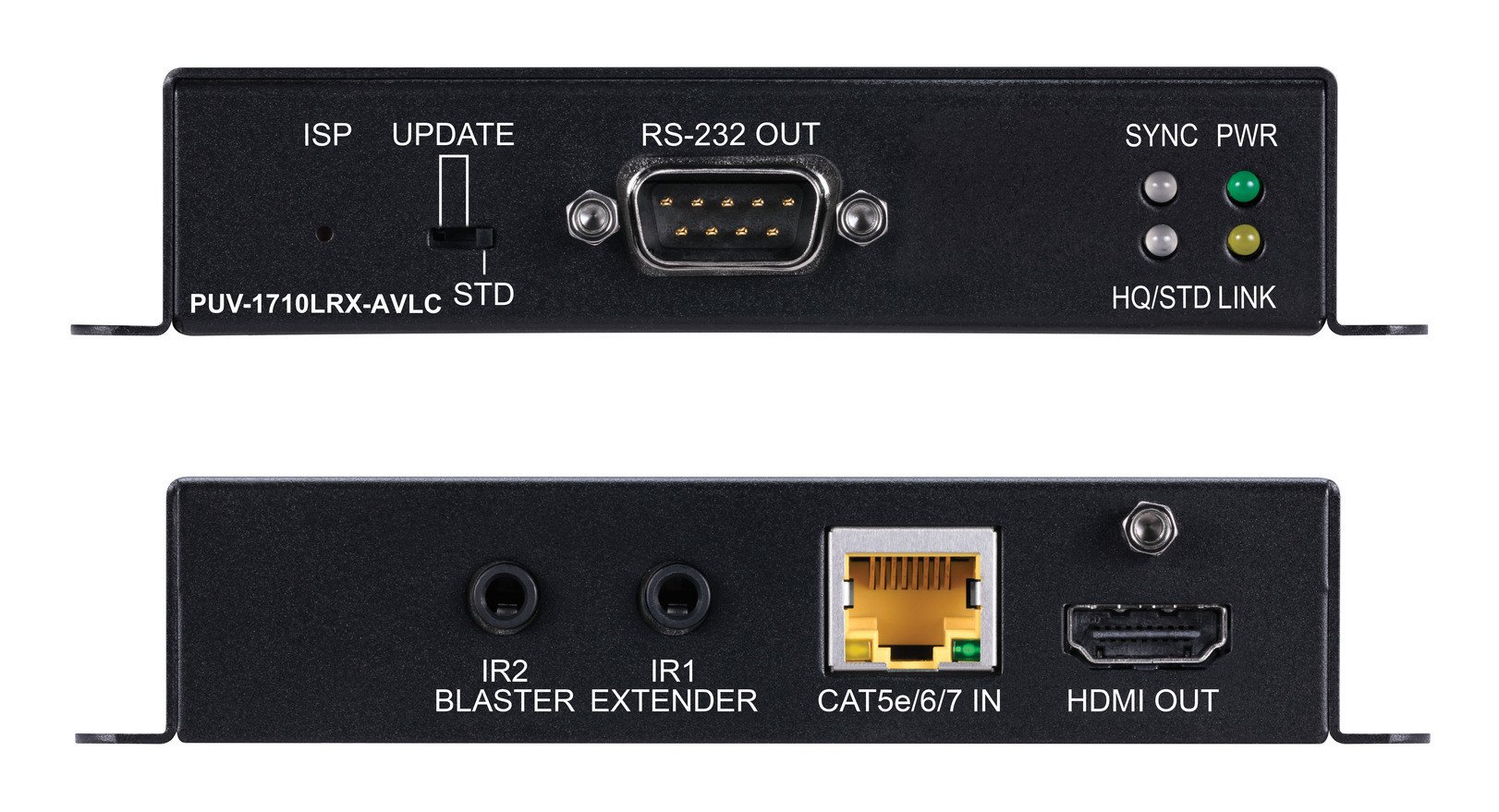

PUV-1710L-AVLC-KIT_RX_Front&Rear_M_Trans

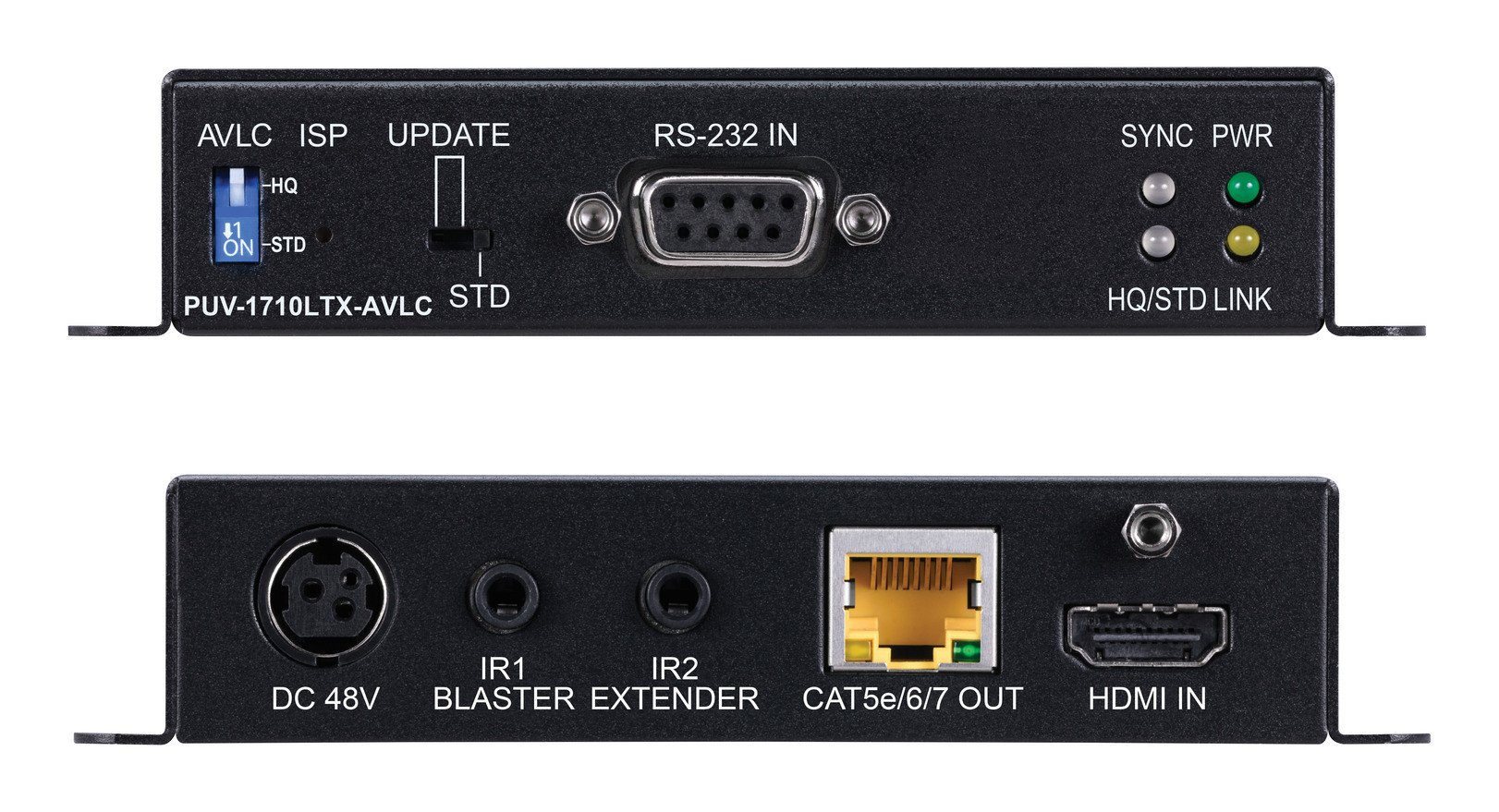

PUV-1710L-AVLC-KIT_TX_Front&Rear_M_Trans
PUV-1710L-AVLC-KIT_SCHEM

PUV-1710L-AVLC-KIT HDBaseT1 Lite Full 4K AVLC Extender Kit with PoH

Product information

MRSP : AED 2,928.00

Description

Compact 4K HDR AV Extension with AVLC & PoH The PUV-1710L-AVLC-KIT extends 4K UHD video (HDR & Dolby Vision) up to 70m over a single CAT6a/7 cable, transmitting audio, control, and power (PoH) seamlessly. With AVLC technology, it bypasses HDBaseT’s 10.2Gbps limit, delivering 18Gbps visually lossless 4K@60Hz (4:4:4) for stunning image quality. Ideal for compact, high-performance AV installations, it ensures reliable signal transmission in any setup.
Register for Trade Discount

Product specifications

  • Supported HDBaseT feature set: HD Video & Audio, 48V PoH, and Control (Bi-directional IR/RS-232 pass-through)
  • Supports up-to 4K UHD (18Gbps, 4K @50/60Hz 4:4:4 8-bit) video output
  • AVLC (Adaptive Visually Lossless Compression)
  • AVLC Features manual selection between High Quality and Standard compression from TX (Useful for longer cable runs)
  • Supports 10-bit and 12-bit HDR (High Dynamic Range)
  • Supports output resolutions up to 4K @50/60Hz (4:4:4 8-bit)
  • Supports Deep Colour input and output up to 12-bit
  • Supports CEC Bypass
  • 4K 3G Timings and 1080p up-to 70 Metres, 4K 6G Timings upto 35 Metres
  • Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
  • Supports 3D signals


Product Description

​The PUV-1710L-AVLC-KIT Transmitter and Receiver Kit enables video resolutions up to 4K UHD including 10/12-bit HDR & Dolby Vision, to be transmitted along with HD audio, 2-Way IR, RS-232, PoH (Power over HDBaseT™) signals from a distance of 35m (4K60 4:4:4): 70m (4K60 4:2:0). This solution provides advanced signal management ensuring reliable results in the most demanding installation environments. All audio, video, control, and power are transmitted simultaneously over a single CAT6a/7 cable up to 70m.

Despite the 10.2Gbps limitation of HDBaseT technology, this ground breaking product enables data rates of up to 18Gbps to be transmitted using AVLC (Adaptive Visually Lossless Compression) Technology. The transmitter enables 4KUHD sources up-to and including 4K@60Hz (4:4:4 8-bit) as well as 10/12 bit sources with HDR (Including Dolby Vision) to be extended to the receiver. The result is a perfect 4K 6G  visually lossless image delivered to the display screen.
