S10P
Product information
Description
Product specifications
Design
- Highly Detailed & Dynamically Accurate
- (1) High-Output 10″ Woofer
- (1) 500-Watt Power Amplifier
- Sealed Enclosure
Flexibility
Multiple placement options:
- Upright
- Down-Firing
- Up-Firing
Additional Features
- Internal Low Pass and Paramtric EQ (Subwoofer)
- High Pass EQ and Delay (Line Level Output)
- USB for PC GUI Advanced Setup
- Signal Sense Auto On/Off
Frequency Response : 35Hz – 80Hz

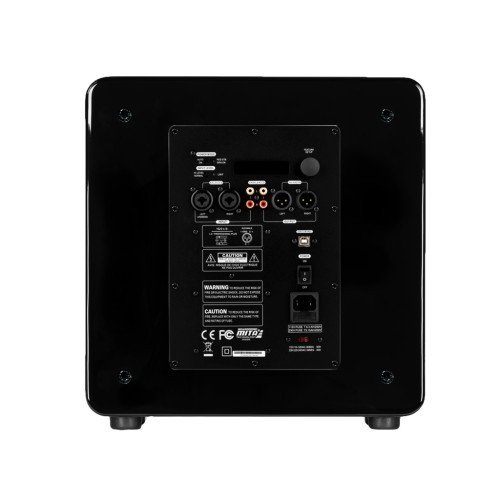

Inputs : Stereo XLR Balanced, Non-inverting, Pin 2 positive
Inputs : Stereo RCA Unbalanced
Outputs : High Pass Stereo XLR Line Level
Outputs : High Pass Stereo RCA Line Level
Amplifier Power : 500W w/DSP
Maximum SPL : 114 dB
Weight : 43 lbs. (19.5 kg)
Dimensions – Height : Upright including feet = 15.9″ (40.5cm)
Dimensions – Height : Down-firing including feet = 7″ (17.8cm)
Dimensions With Grille – Width x Height : 15.9” x 15.3” x 6.9″ (40.5cm x 38.8cm x 17.5cm)
Dimensions Without Grille – Width x Height : 15.9” x 15.3” x 6.4″ (40.5cm x 38.8cm x 16.2cm)
Mains Voltage Range : 100V-120V, or 220-240V, 50Hz/60Hz determined by the needs of country for which the unit was manufactured
Product Description

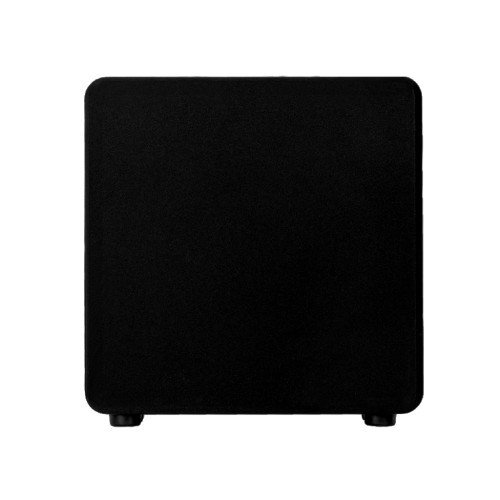

The S10P (10”) 500-Watt Powered Subwoofer is a versatile unit capable of producing powerful clean bass from an incredibly compact cabinet. Convertible from freestanding upright to down-firing or up-firing installation, the ultra-compact design can easily be hidden under sofas or cabinets. At only 7.48” (190mm) deep and featuring a sealed cabinet, the stylish S10P is discreet and easy to install. Available in luxurious high gloss black finish, with a black magnetically attached grille. The amplifier also includes a DSP capable of offering 10 parametric filter allowing dealers to perform manual calibrations and tailor the response to each specific project.
