Ursium Alisse Touch
Product information
Description
Product specifications
AESTHETIC FEATURES
- Bright Full Colour wide viewing angle Display
- Aesthetic Matching with leading manufacturer lighting keypads
- Customisation of finishes and custom digital crown using materials like carbon fibre,wood, leather, acrylics and gold.
TECHNICAL FEATURES
- Full Colour IPS Capacitive Touch Screen
- Independently Control of two rooms for both heating and cooling
- Optional Towel Rail Control
- Optional Hot Water Control
- Centigrade & Fahrenheit with dynamic swap support
- External / Remote temperature probe inputs
- Minimum and Maximum floor temperature control
- Virtual Temperature interface with VRV & VRF
- Modbus Communications Interface
Model Numbers
- URS-ACM-NONE: Single gang electronics base unit with local AC control.
- URS-FP1-ALI-ff: Lutron Alisse Single Gang Face Plate Kit with digital crown.
Temperature & Sensor Capabilities
- Measurement: Centigrade or Fahrenheit.
- Configurable Display Resolutions: 0.1, 0.5 & 1.0 °C/°F.
- Accuracy: ±0.5°C / ±1°F.
- Dead Band Support: 0–8°C (0.5°C increments) for heating and cooling (16°C total width).
- Floor Temperature: Configurable maximum and minimum for Zones 1 & 2.
Zone Support
- Zone 1:
- Internal temperature and humidity sensors.
- 3 remote probe inputs (2 Wall, 1 Floor).
- Zone 2:
- 2 remote probe inputs (1 Wall, 1 Floor).
- Can be enabled or disabled.
- Probe Length: 1m to 10m.
Heating & Cooling
- Heating:
- Enable/disable by zone.
- Optional heating modulation.
- 3-stage heating (Primary, Secondary, Third).
- Cooling:
- Enable/disable by zone.
- Direct or indirect (via Modbus).
Operation & Eco Modes
- Operation Modes: OFF, AUTO, Away, Heating Only, Cooling Only.
- Eco Modes: OFF, Low, Medium, High with configurable thresholds.
Towel Rail & Hot Water Control
- Optional override and timers (2/day for each).
Humidity & Setpoint
- Humidity Range: 15%–85% RH (±5% accuracy).
- Setpoint Range: 5–36°C (increments of 0.5°C/1.0°C).
Scheduling
- Built-in RTC with 7 room profiles.
- 5/2 day timers:
- Zone 1 & 2: 4/4 settings per day.
- Towel Rail & Hot Water: 2/day.
Power
- Supply: 18–28V DC, 40mA typical consumption.
- Protections: Short circuit and overload support.
Display
- Screen: 2.4-inch IPS TFT, 50,000-hour lifespan.
- Touchscreen optional.
Communications
- Modbus RTU, 9600–115200 Baud, 1–32 IDs.
- Secondary Modbus in ACM models (MASTER mode @ 9600bps).
Additional Features
- Digital Inputs: 2 Volt-Free (ACM models).
- ESD Protection: IEC 801-2, withstands 15kV discharge.
- Memory: Non-volatile EEPROM (100,000 writes).
- Environment: -5°C to 40°C, 0–85% RH (indoor use, IP20).
Mounting & Wiring
- Wiring: SELV/PELV/NEC® Class 2 compliant.
- Terminals: Accepts 24–12 AWG wires.
Product Description

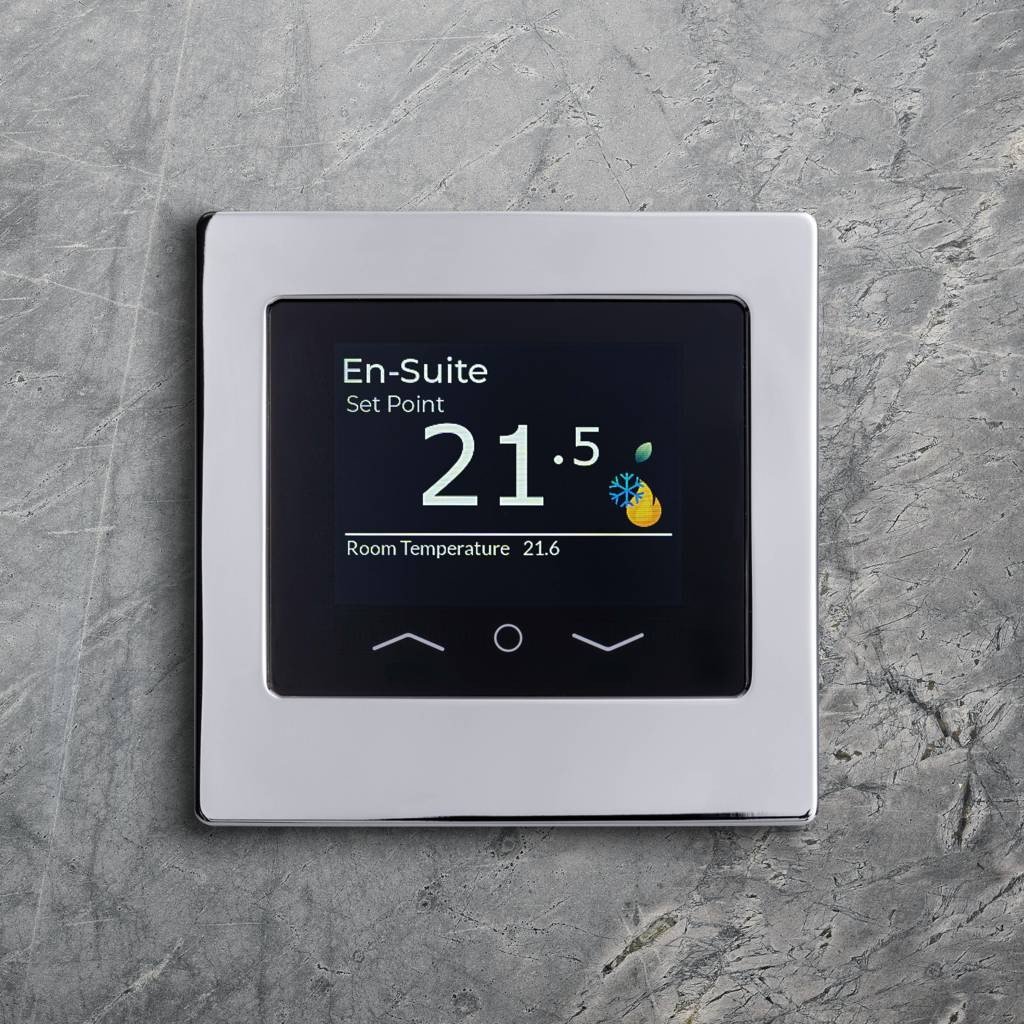

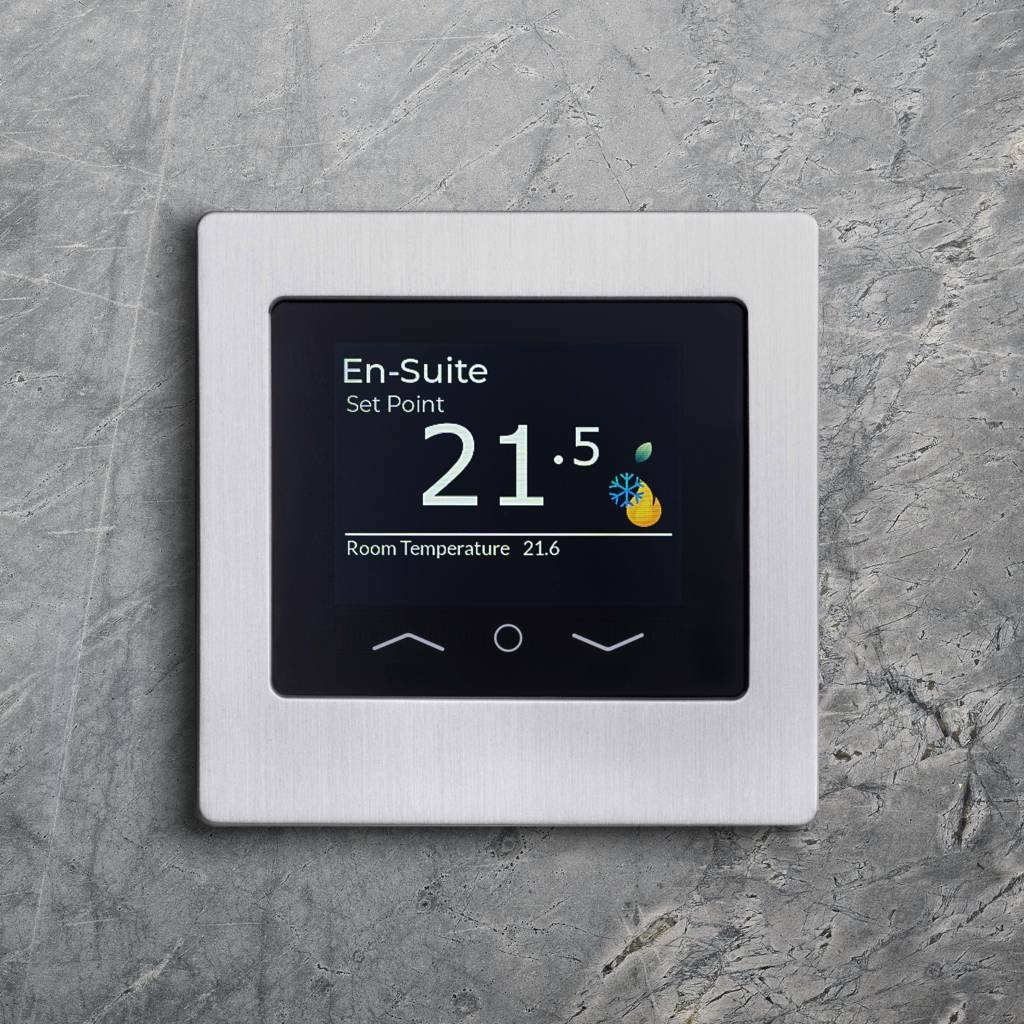

Touch Interface
The new Touch Ursium replaces the digital crown with a sleek capacitive touchscreen, offering an intuitive, minimalist interface for climate control. Simply swipe up or down to adjust the room temperature (setpoint). The on-screen numbers change colour to reflect your action: orange for heating, blue for cooling. A brief animation—an orange flame or blue snowflake—confirms the system's response on the main screen.
All core functions are accessible through the touchscreen interface. Tap the screen to cycle through available features:
Fan control: OFF, AUTO, 1–6 (installer-configurable)
Zone 2 temperature: Heating and cooling (if enabled)
Towel radiator: OFF, AUTO, or set a timer in 5-minute increments
If any features are disabled in the system settings, they are automatically hidden from the interface to ensure a clean and simple user experience.
Dual Zone / Dual Room Control
Ursium supports dual zone control, allowing full independent management of heating and cooling in two rooms. The second zone is activated using remote temperature probes wired to the rear of the unit. If not required, Zone 2 can be disabled, removing any related interface elements.
Heating-Only or Cooling-Only Modes
Each zone can be configured individually as heating-only, cooling-only, or heating and cooling. When a specific mode is selected, the thermostat automatically hides any irrelevant symbols or settings for a simplified display.
Built-in Humidity Sensing
Zone 1 includes a built-in humidity sensor, which can be enabled or disabled via the display. Humidity data is always available via Modbus, regardless of display settings.
Temperature Sensors & Averaging
The Touch Ursium accepts up to five 10k3 remote probes, with three assignable to Zone 1 and two to Zone 2.
Zone 1 can average multiple sensors or disable the internal sensor for flexible thermostat placement.
Each zone can have a dedicated probe for floor temperature monitoring.
All sensor data is accessible via Modbus, making the thermostat a mini temperature hub for monitoring AV equipment, pipework, manifolds, or other spaces.
