Seamless AV Control for Residential and Commercial Spaces: The Power of a 4×4 HDMI Matrix Switcher

What a 4x4 HDMI matrix actually does

A matrix switcher routes any input to any output independently. With a 4x4 matrix, your satellite receiver can play on the living room TV while your Apple TV plays on the kitchen display, your games console feeds the bedroom screen, and your Blu-ray is routed to the cinema. Any source to any display, any time, all simultaneously.

4x4 vs distribution amplifier

A 1x4 distribution amplifier sends one source to four displays. Everyone sees the same thing. A 4x4 matrix sends any source to any display — each display independent. For residential and small commercial, this independence is usually what clients actually want.

When to specify a 4x4 over a larger matrix

• Apartments with 3-4 AV sources and 4 displays maximum
• Small villas where expansion beyond 4 zones is unlikely
• Meeting rooms with 2-3 sources and 3-4 display positions
• Projects with tight budgets that don't need 8x8 or larger capacity

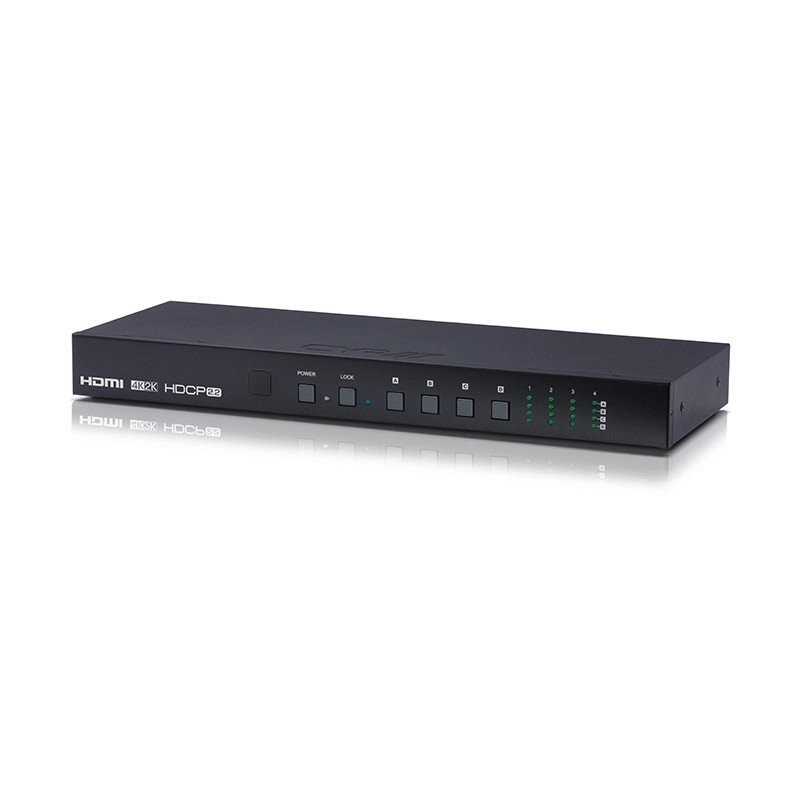

CYP's 4x4 range

CYP offers multiple 4x4 matrix variants — HDMI-only, HDBaseT-equipped, and AVLC-enabled for 4K over long runs. Cache supplies the full CYP 4x4 catalogue from Dubai stock with next-day UAE delivery.

Control integration

All CYP matrix switchers support bi-directional IR, RS-232 pass-through and web GUI control, with drivers available for Control4, Crestron, Savant, RTI and URC systems.
