AV over IP in the UAE: Scalable Video Distribution for 2026 and Beyond

AV over IP has matured from an emerging technology into the standard infrastructure choice for large-scale UAE installations where scalability, flexibility, and future-proofing matter most.

What is AV over IP?

AV over IP distributes video, audio, and control signals across standard IP network infrastructure. Rather than running individual HDMI or HDBaseT cables, AV over IP uses encoders to convert video into IP data packets transmitted across a managed Ethernet switch, and decoded back to video by receivers at each display.

The key advantage is scalability: a traditional 8x8 matrix has exactly 8 inputs and 8 outputs. An AV over IP system on a 24-port managed switch can have 24 encoders and 24 decoders in any combination, and expanding means replacing a switch, not a matrix. For UAE hotels, commercial buildings, and large villas, this scalability is transformative.

1G vs. 10G SDVoE: Understanding the Difference

1 Gigabit AV over IP

1G AV over IP uses video compression (H.264, H.265, or JPEG 2000) to fit multiple streams onto standard gigabit infrastructure. Latency varies — H.264 typically 100–300ms, JPEG 2000 as low as 16ms. Suited to digital signage, broadcast monitoring, surveillance viewing, and secondary AV zones where 1080p or visually lossless 4K is sufficient.

10 Gigabit SDVoE

SDVoE uses 10 Gigabit Ethernet to transmit genuinely uncompressed 4K/60Hz 4:4:4 video at zero latency — indistinguishable from a direct HDMI connection. SDVoE also enables video walls, multiview, and picture-in-picture using the processing power within the encoder/decoder hardware, replacing dedicated video processors. The correct choice for premium UAE residential, broadcast, and high-end hospitality where uncompressed quality matters.

Network Requirements

• Managed switches: Required with IGMP v2/v3 for multicast traffic control. Consumer switches cannot manage AV over IP multicast correctly.
• IGMP snooping: Must be enabled to prevent video stream flooding to all ports
• QoS: Prioritise AV traffic over data traffic when sharing with IT infrastructure
• Dedicated VLAN: Best practice is to isolate AV over IP from guest or corporate data traffic

AV over IP vs. HDBaseT: When to Use Each

• Use HDBaseT when: 8 or fewer display zones, straightforward matrix routing, zero-latency 4K/60Hz with minimal network management overhead
• Use AV over IP when: 8+ display zones, future expansion is likely, video wall processing needed, or project is part of larger IP network infrastructure

AV over IP for UAE Hotels

For large UAE hotel projects with 300+ guestrooms, multiple conference facilities, restaurant screens, and lobby signage, AV over IP is the only practical and cost-effective distribution architecture. The ability to send any content to any display, add new display points by simply adding a decoder to the network switch, and manage the entire system from a single IP-based interface makes AV over IP the future-proof choice for the UAE's large-scale hospitality market.

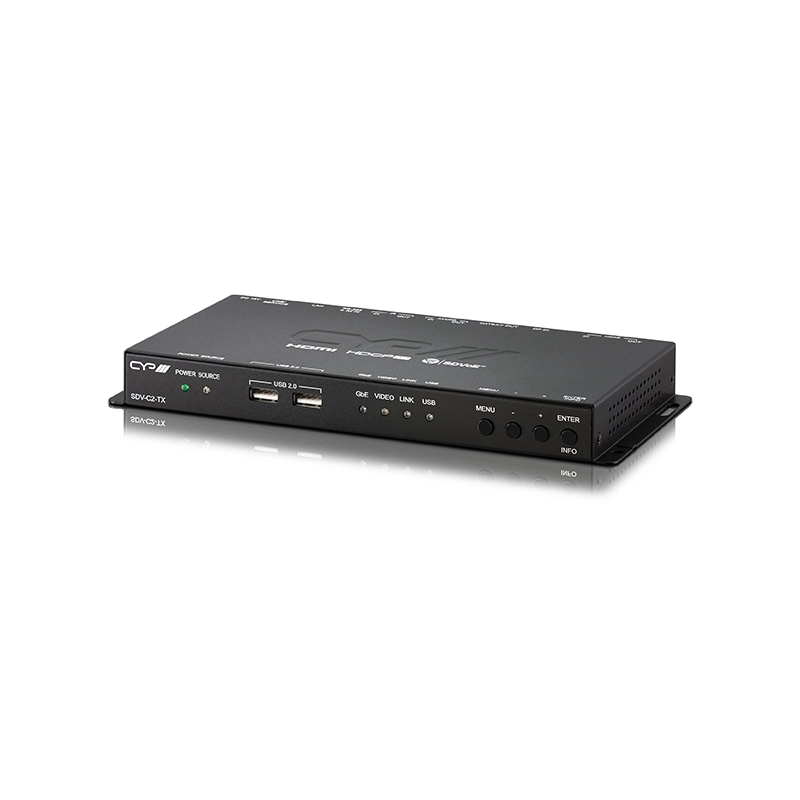

Cache.ae distributes the CYP AV over IP range across the UAE and GCC. Our engineers assist with network design, switch specification, and system commissioning. Contact us for design support and project pricing.
