Insight P7M-LCR Soundbar
Product information
Description
The Insight Series P7m-LCR Soundbar was specifically designed to avoid the compromises inherent in other conventional soundbar “custom length” designs, so you will not have to give up any sound quality just to have it match the width of your TV. The P7m-LCR Soundbar is available in custom lengths to fit TV’s from 65″ (165.1cm) – 77″ (195.58cm) with a minimum width of 56.4” (143.26cm) and a maximum width of 70.4” (178.82cm). The P7m-LCR contains (3) Spherical PMDs for the high frequencies playing down to an amazing 900 Hz, and (4) 4.5″ Woofers to do the low-frequency heavy lifting.
Product specifications
Design

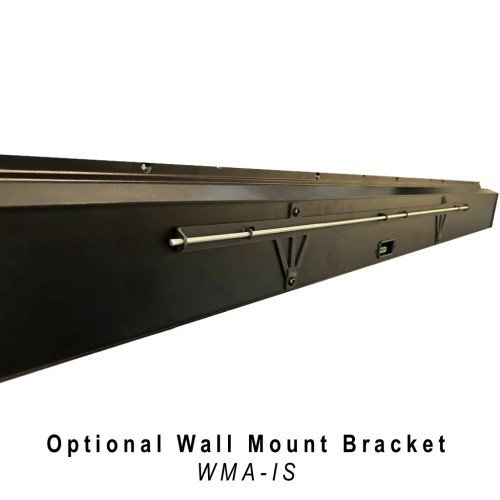

- On-Wall (Bracket Sold Separately)

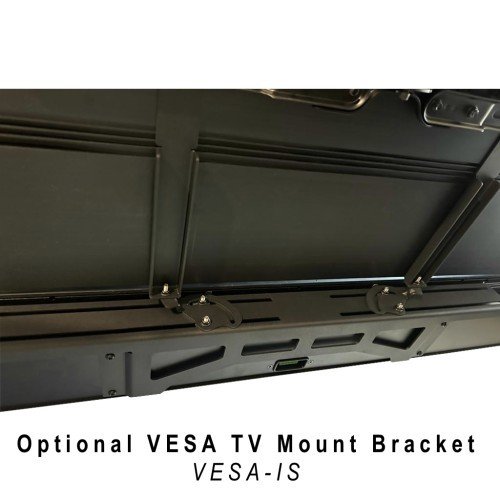

- TV VESA Mount (Bracket Sold Separately)
Planar Magnetic
- Highly Detailed & Dynamic
- (3) Planar Magnetic Spherical Drivers
- Covers 4 Octaves of Clarity
- Light Weight Film PEEK
- FAST Acceleration
Flexibility
- Available in 3 CH Configurations only
- Available as On-Wall or TV-Mount using a VESA Bracket
- Custom Length Available, Minimum width is 56.4” (1433mm), Maximum width is 70.4” (1788mm)
Additional
- Full Range Loudspeaker
- (4) 4.5″ Woofers
- 3-CH’s of Amplification Required
- Frequency Response : 80Hz – 20kHz +/- 3dB
- Low Frequency Extension : 54hz (-10dB)
- Recommended High Pass Crossover : 100Hz 24dB Linkwitz Riley Crossover
- Impedance : Center CH = 4 ohms; Left & Right CH’s = 8 ohms
- Sensitivity : 80dB 2.83V @ 1m
- Coverage Angle Horizontal x Vertical (-6db) : Center = 100° x 110°; Left & Right Ch’s = 110° x110°
- Net Weight (Max weight at largest TV size) : 31.5 lbs
- Recommended Minimum Amplifier : 75 Watts
- Maximum Continuous Power Handling : 200 Watts
- TV Sizes : 65″ to 77″ diagonal TV sizes nominal
- Min – Max Length : Minimum width is 56.4” (1433mm), Maximum width is 70.4” (1788mm)
- Depth with Optional Wall Mount : 3.82” (97.2mm)
- Depth with Optional VESA TV Mount : 3.95” (100.4mm)
- Height : 7.25″ (184mm)
- Amplifier Channels Needed : 3
Product Description
The Insight Series P7m-LCR Soundbar was specifically designed to avoid the compromises inherent in other conventional soundbar “custom length” designs, so you will not have to give up any sound quality just to have it match the width of your TV. The P7m-LCR Soundbar is available in custom lengths to fit TV’s from 65″ (165.1cm) – 77″ (195.58cm) with a minimum width of 56.4” (143.26cm) and a maximum width of 70.4” (178.82cm). The P7m-LCR contains (3) Spherical PMDs for the high frequencies playing down to an amazing 900 Hz, and (4) 4.5″ Woofers to do the low-frequency heavy lifting.
