Insight Series ICi6
Product information
Description
Product specifications
Planar Magnetic
- Highly Detailed & Dynamic
- (1) Sprial Planar Magnetic Driver
- Covers 4 Octaves of Clarity
- Light Weight Film PEEK
- FAST Acceleration
Multi-Purpose
The Perfect Product for Multiple Applications:
- Hi-Fi 2-Channel In-Ceiling Stereo
- Distributed Audio Zones
- In-Ceiling Side & Rear Channels
- In-Ceiling LCR
- In-Ceiling Immersive Audio Applications
Optional Custom Accessories
FBB-IC – Fire Rated Back Box Available Fire-Rated Back Box 6.625” Deep **Can only be ordered in 6-Packs**
ICI6 In-Ceiling Square (SL-WICI6S-030) or Round (SL-WICI6R-030) Flush Plaster Mounting Platforms by SeeLess
Additional
- Full Range Loudspeaker
- (1) High Operating Woofer

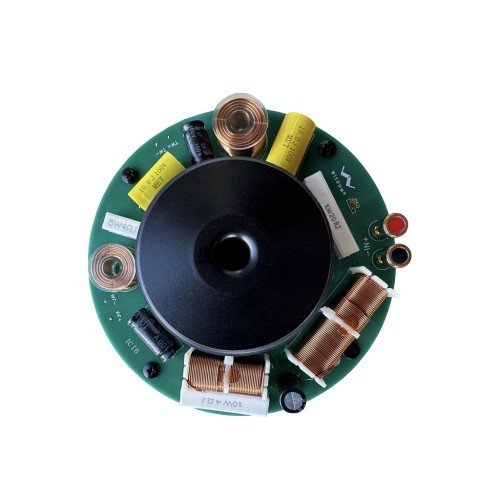

- Passive Crossover
- 1-CH’s of Amplification Required
Frequency Response : 48Hz – 20kHz +/- 3
Low Frequency Extension : 32 Hz (-10 dB)
Coverage Angle (-6 dB) : 150° (based on 40° being the reference axis)
Crossover Frequency : 1200 Hz
Impedance : 8 ohms
Sensitivity : 82 dB
Minimum Recommended Power : 50 Watts
Continuous Power Handling : 100 Watts
Round Grille O.D. : 8.94″ (227 mm)
Square Grille O.D. : 8.9″ x 8.9″ (225.5 mm x 225.5 mm)
Speaker Depth : 5.865″ (149 mm)
Required Installation Depth : 5.76″ (147 mm)
Cutout Dimension : 7.7″ (195 mm)
Dimensions – Diameter x Depth : 8.744″ x 5.865″ (222.1 mm x 149 mm )
Backbox Enclosure Volume : 2.0 ft3 (56L) Recommended minimum or larger, for rated frequency response
0.5 ft3 (15L) Minimum for use with a subwoofer and 80Hz Crossover
Shipping Weight : 8.8 lbs. (4.0 kg)
Product Description

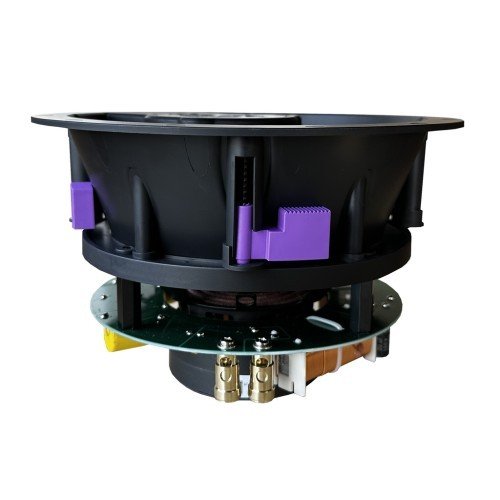

The Insight Series ICI6 in-ceiling speaker is designed for high resolution distributed audio zones, LCR channels, and also surround and overhead channels. It uses our incredible spiral planar magnetic driver for frequencies from 1200 Hz up to 20,000 kHz along with a robust 6-1/2 woofer resulting in amazing clarity, dynamics, and most importantly off axis consistency. It comes with both round and square bezel-less grilles. Optional Accessories: Fire-Rated Back Boxes, and flush-mount kits from SeeLess.
