Insight Series L8i
Product information
Description
Product specifications
Line Source
- Eliminate Floor and Ceiling Reflection
- Enhance Clarity
- More Power Over Distance
- Share Experience
Planar Magnetic
- Highly Detailed & Dynamic
- (2) 24” Planar Magnetic Drivers
- Covers 6 Octaves of Clarity
- Light Weight Film PEEK
- FAST Acceleration
Flexibility

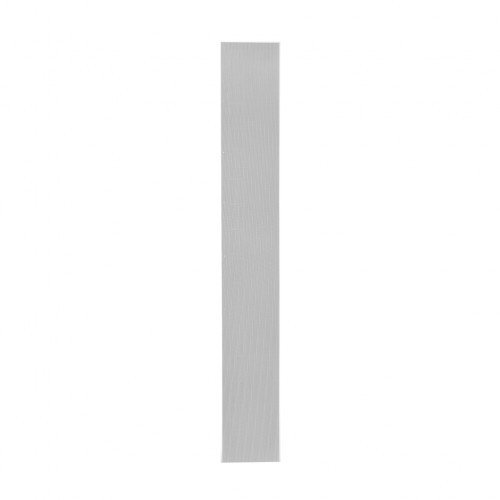

- Custom Length Grilles Available
Additional
- Full Range Loudspeaker
- (8) High Operating Woofers
- 1-CH of Amplification Required
Frequency Response (Using Minimum Air Volume Spec) : 80Hz – 20kHz
Impedance : 4 ohms
Sensitivity : 91 dB / 2.83 V / 1m
Crossover Frequency : 550 Hz
Dispersion (Horizontal, -6dB) : 80°
Max SPL (1 Meter) : 115dB Continuous / 118dB Peak
Shipping Weight : 68 lbs. (31kg)
Dimensions HxWxD : 51.57” x 8.34” x 3.78” (131cm x 21.2cm x 9.6cm)
Product Description

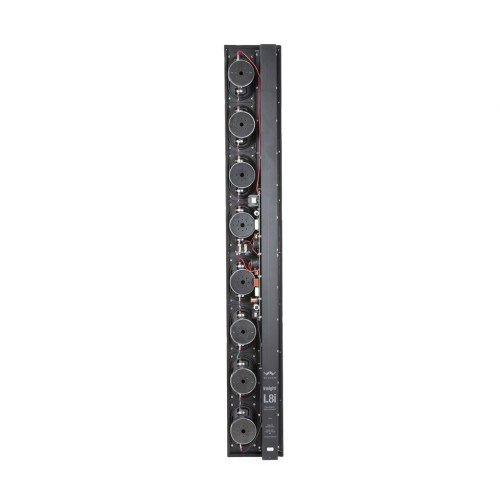

The L8i benefits from the same core technologies and design elements of the Sage Series L75i packaged in a more compact and flexible form. It combines application-specific, state-of-the-art transducer elements in a way that takes full advantage of their inherent performance benefits.

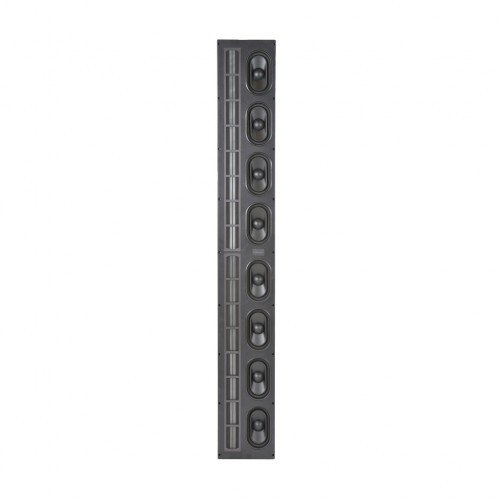

The L8i employs a 48” planar magnetic line source to reproduce everything above 550 Hz and eight proprietary 3”x5” woofers for the bass. The L8i’s 48-inch tall line source driver complement allows for high resolution, low distortion, and superior dynamic range. The result is a highly detailed, dynamically accurate, genuinely effortless performance at any volume level.
Architectural Design with Custom in Mind
Slim and elegant in design, the in-wall/ceiling Insight Series L8i can be made to blends nicely into a your décor through our optional custom length grilles.
Eliminate Floor and Ceiling Reflection
The Line Source design eliminates floor and ceiling reflection while distributing sound levels uniformly across the width of any room. It provides a much better power constituency than a point source. This is a great benefit when designing an entertainment system in large modern open-floor living spaces as well as multi-tier theaters.
