Insight Series P4m
Product information
Description
Product specifications
Design
- On-Wall
- On-Bookshelf

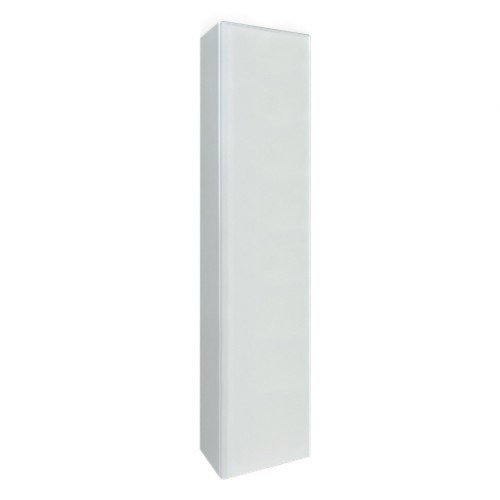

- Black/White Magnetic Grilles Provided
Planar Magnetic
- Highly Detailed & Dynamic
- (1) Planar Magnetic Driver
- Covers 5 Octaves of Clarity
- Light Weight Film PEEK
- FAST Acceleration
Flexibility

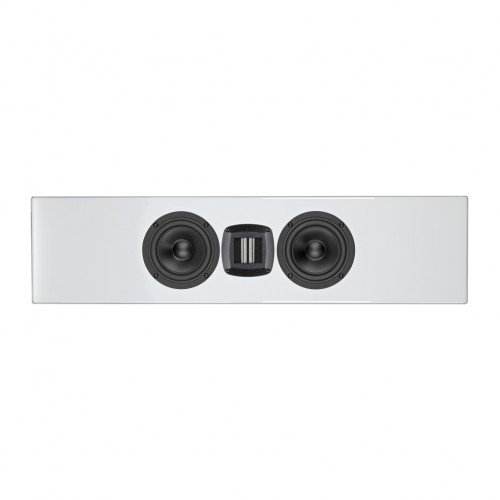

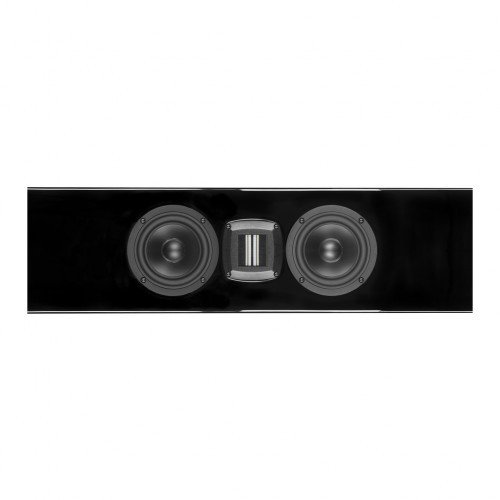

- Can be Mounted Vertically or Horizontally
Additional
- Full Range Loudspeaker
- (2) High Operating 5″ Woofers
- 1-CH of Amplification Required
Frequency Response : 50Hz – 20kHz
Impedance : 6 ohms
Sensitivity : 89 dB
Crossover Frequency : 650 Hz
Dispersion (Horizontal x Vertical, -6dB) : 70° x 40°
Recommended Amplifier Power : 50-200W
Max SPL (1 Meter) : 112 dB
Shipping Weight : 25 lbs. (11.3 kg)
Dimensions With Grille HxWxD : 33.150″ x 8.07″ x 4.661″ (84.2cm x 20.5cm x 11.84cm)
Dimensions Without Grille HxWxD : 33.150″ x 8.07″ x 4.134″ (84.2cm x 20.5cm x 10.5cm)
Product Description
Compact in size, the P4m takes our Insight Series to the next level, but in a product that can be mounted on a wall or placed on a shelf top. The Insight Series P4m includes a new rotatable planar magnetic driver – and two robust 5” woofers for low distortion, high-resolution sound, and a superior dynamic range. The result is excellent, uniform dispersion throughout its operating range, providing superb off-axis coverage.
Architectural Design with Custom in Mind
Slim and elegant in design, the on-wall Insight Series P4m can be mounted horizontally or vertically or placed on a shelf top.
