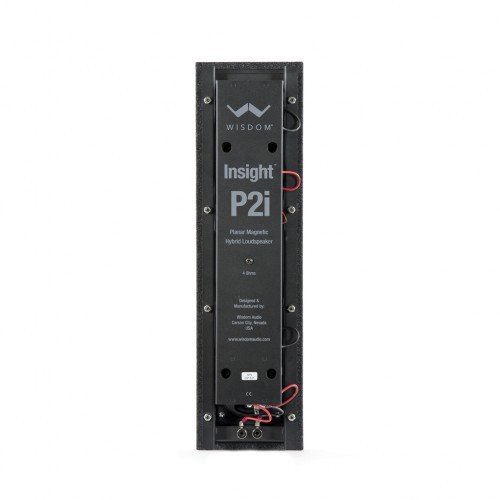

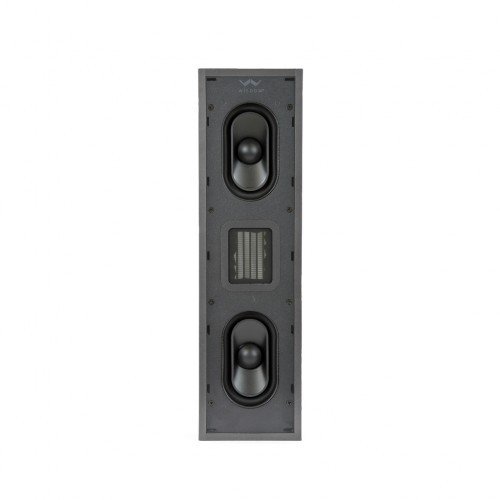

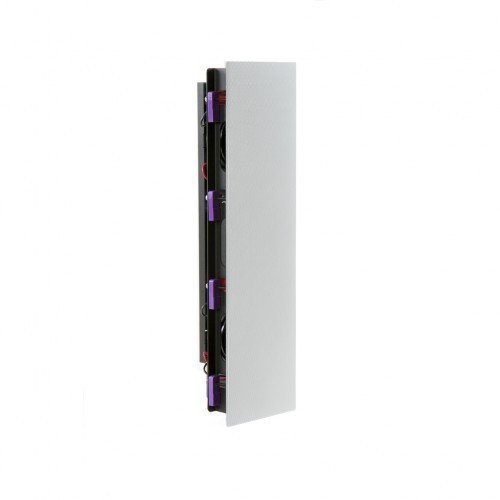

Insight Series P2i
Product information
Description
Product specifications
Design
- In-Wall
- In-Ceiling
Planar Magnetic
- Highly Detailed & Dynamic
- (1) Planar Magnetic Driver
- Covers 5 Octaves of Clarity
- Light Weight Film PEEK
- FAST Acceleration
Flexibility
- Can be Mounted Vertically or Horizontally
- Custom Length Grilles Available
Additional
- Full Range Loudspeaker
- (2) High Operating Woofers
- 1-CH’s of Amplification Required
Frequency Response (Using Minimum Air Volume Spec) : 80Hz – 20kHz
Impedance : 4 ohms
Sensitivity : 86 dB / 2.83 V / 1m
Dispersion (Horizontal x Vertical, -6dB) : 60° x 30°
Crossover Frequency : 650 Hz
Max SPL (1 Meter) : 107 dB
Shipping Weight : 14 lbs. (7 kg)
Dimensions HxWxD : 19.44” x 5.39” x 3.43” (49.4cm x 13.7cm x 8.7cm)
Product Description
The Insight Series P2i is part of the Wisdom Audio Insight Series, distributed by Cache Robotics under exclusive distribution rights.
The P2i as a surround channel speaker
Reference Atmos systems need surround channels that match the front L/C/R tonally without dominating the visual field. The P2i is the compact in-wall in the Insight Series, designed precisely for that role. It carries the same planar magnetic acoustic signature as the larger P4i, P6i, and L8i, ensuring that pan effects between front and surround read seamlessly with no mismatch in tonality.
Configurations
In a 7.1.4 luxury Dubai villa cinema, the typical layout uses larger P4i or P6i across the front L/C/R, four P2i for the side and rear surrounds, and Insight ICi6 for the four Atmos overhead positions. The P2i can also serve as the L/C/R in compact dedicated listening rooms or smaller secondary cinema spaces.
Wisdom Audio Insight Series
The Wisdom Audio Insight Series is built around proprietary planar magnetic thin-film driver technology. Where conventional speakers use cone drivers and dome tweeters split across a crossover, planar magnetic drivers distribute sound across a wide flat surface as a single acoustic source over most of the audible range. The result is unusually coherent tonal reproduction, minimal phase distortion, and directional precision that couples well with the room.
How this fits in the Wisdom Audio Insight Series
ModelFormat Insight P2iCompact in-wall, surround channels in compact cinema Insight P4iIn-wall, mid-size cinema L/C/R or surround Insight P6iIn-wall, reference L/C/R for large cinema Insight L8iIn-wall flagship line-source for highest output Insight P2mOn-wall, alternative to P2i where in-wall is not feasible Insight P4mOn-wall, alternative to P4i Insight ICi6In-ceiling, Atmos overhead and ceiling-mount LCR Insight P7M-LCR SoundbarReference soundbar for displays without separate L/C/R
Browse the full Wisdom Audio Insight Series on Cache.
Wisdom Audio Insight Series products are project-quoted on enquiry. Cache Robotics is the official exclusive distributor for the region
