Insight Series P6i
Product information
Description
Product specifications
Design
- In-Wall
- In-Ceiling
Planar Magnetic
- Highly Detailed & Dynamic
- (1) MTM Planar Magnetic Driver
- Covers 5 Octaves of Clarity
- Light Weight Film PEEK
- FAST Acceleration
Flexibility
- Can be Mounted Vertically or Horizontally

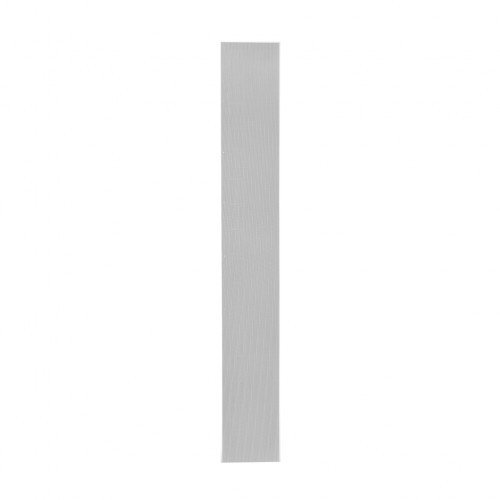

- Custom Length Grilles Available
Additional
- Full Range Loudspeaker
- (6) High Operating Woofers
- 1-CH’s of Amplification Required
Frequency Response (Using Minimum Air Volume Spec) : 80Hz – 20kHz
Impedance : 4 ohms
Sensitivity : 90 dB / 2.83 V / 1m
Crossover Frequency : 600 Hz
Dispersion (Horizontal x Vertical, -6dB) : 60° x 30°
Max SPL (1 Meter) : 116 dB
Shipping Weight : 38 lbs. (18 kg)
Dimensions HxWxD : 51.7” x 5.52” x 3.43” (131cm x 13.7cm x 8.7cm)
Product Description
The Insight Series P6i sonically presents itself in a room with the convincing authority normally associated with much larger loudspeakers. Employing MTM planar magnetic drivers for the majority of its output, it is incredibly detailed and dynamic and does not suffer from the sonic compression that plagues many conventional loudspeaker designs. The P6i provides stunning, lifelike dynamic music/movie reproduction that belies its slim profile and compact design.
The Insight Series P6i uses six robust 3”x5” woofers for low distortion, high-resolution sound, and a superior dynamic range. The result is excellent, uniform horizontal dispersion throughout its operating range, providing superb off-axis coverage in both in-wall vertical and horizontal applications.
Architectural Design with Custom in Mind
Slim and elegant in design, the in-wall/ceiling Insight Series P6i can be made to blend nicely into your décor through our optional custom-length grilles, and horizontal/vertical mounting options.
